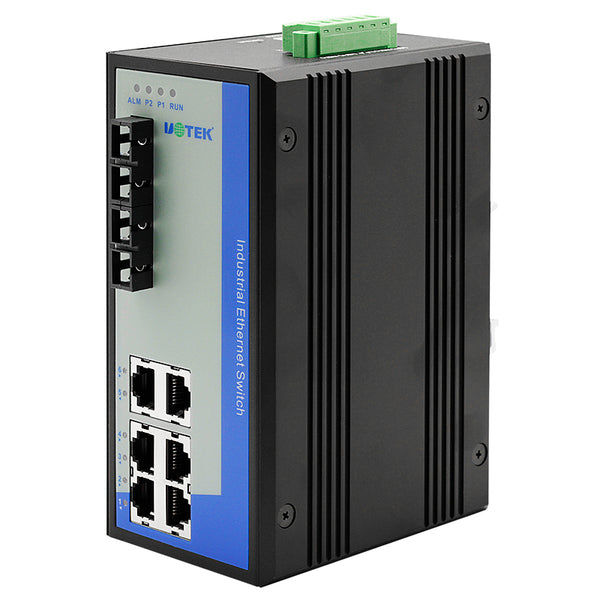

UOTEK UT-62208F 8+2G Gigabit Managed Ethernet Switch

>>Protocol Standards

IEEE 802.3u, IEEE 802.3z, IEEE 802.3, IEEE 802.1D, IEEE 802.1W,
IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

>>Interfaces

Fiber interfaces: 100Base-FX（SC/FC/ST）

              1000Base-X（SC/FC/ST/SFP slot）

RJ45 interface: 10/100Base-T(X), auto MDI/MDI-X

>>LED indicator light

Power indicator light, Network indicator light, alarm indicator light, Running indicator light.

>>Power consumption

Max. input power consumption 400mA@24Vmax

>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1310nm 20/40/60Km

           1550nm 80/100/120Km

Multi-mode: 1310nm 2Km

>>Switching Performance

100M ports: 148,810pps

1000M ports: 1,488,095pps

Transmission mode: store and forward

MAC address size: 8K

Cache size: 1Mb

Backplane bandwidth: 7.6G

Max. frame length: 1632B

>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail Mounted

>>Power Requirement

Voltage input: 12/24/48 VDC (10.8~52.8VDC) and 110/220 VAC (88~264VAC) /50-60Hz  or 110/220VDC(88~264VDC)

Supports redundant dual power input

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Weight: 930g

Packaging dimension: 250mm x 55mm x 205mm

>>Industrial Standards

EMI:

FCC Part 15, CISPR (EN55022) class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
