UOTEK UT-62404 100M 4 Fiber Ports 4 RJ-45 Ports Industrial Switch
>>Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T(X) & 100Base-FX
>>Ports
Optic fiber port: 4x100Base-FX port(with optional SC, ST, FC)
RJ45 port:4x10/100Base-T(X) port, auto detection, full/half-duplex, auto MDI/MDI-X
LED indicators: PWR1, PWR2, FAIL, FDX1, FDX2, FDX3, FDX4, RJ-45
Alarm contact: 1 channel relay output, NONC, 1A@ 24VDC
>>Fiber-optic Feature
Mode:
Multi-mode: 50/125,62.5/125
Single-mode: 8.3/125,8.7/125,9/125,10/125μm
Transmission distance:
Multi-mode: 2km
Single-mode: 20km, with optional 40Km, 60Km, 80km, 120km
UTP5: 100m
>>Power Requirement
Input voltage: DC12/24/48V, redundant dual power input

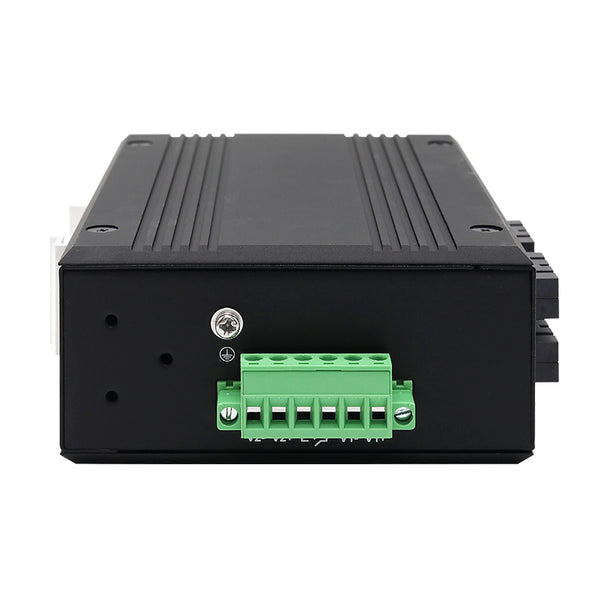

Terminal block: 1 pluggable 6-pin terminal block
Overload protection: Yes
Reverse polarity protection: Yes
>>Mechanical Characteristics
IP rating: IP30
Installation: DIN-Rail/wall-mounted
Dimension(W x H x D):150mm×47.6mm×100mm
>>Environment
Operating temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Relative humidity:5~95% (non-condensing)
>>Industrial standards
EMI:FCC Part 15 Subpart B class A, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD), grade 4
IEC(EN)61000-4-3(RS), grade 3
IEC(EN)61000-4-4(EFT), grade 4
IEC(EN)61000-4-5(Surge), grade 4
IEC(EN)61000-4-6(CS), grade 3
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
