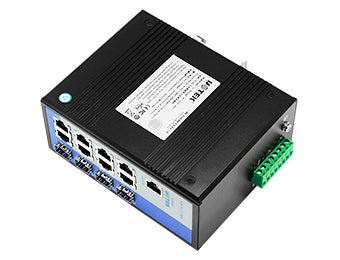

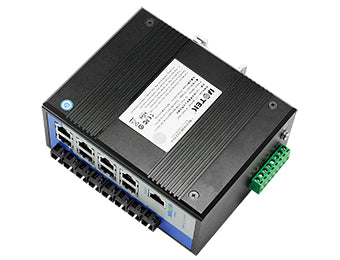

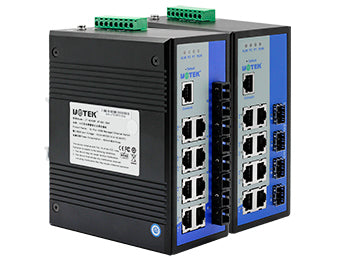

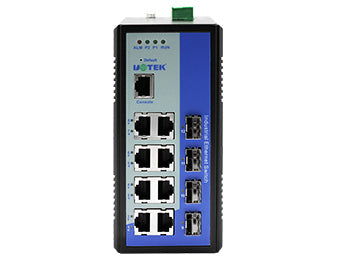

UOTEK UT-62408F 8+4G Gigabit Managed Ethernet Switch

>>Standards & Protocols

Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z,

                 IEEE802.3ab, IEEE802.1Q, IEEE802.1p,

                 IEEE802.1D, IEEE802.1W

Protocols: ICMP, TCP, HTTP, Telnet, UT-Ring, STP/RSTP,

                SNMP, LLDP, IGMP-Snooping, GMRP

Flow control: IEEE802.3x flow control, back pressure flow control

>>Ports

Fiber port: 100Base-FX(SC/FC/ST)

                 1000Base-X(SC/FC/ST /SFP slot)

RJ45 port: 10/100Base-T(X)，auto MDI/MDI-X

>>Transmission Distance

Cat.5e: 100m

>>Fiber Patch Cord

Single-mode: 1,310nm   20/40/60Km

                   1,550nm   20/40/60/80/100/120Km

Multi-mode: 1,310nm   2Km

>>Switching Performance

Forwarding rate:

100M ports: 148,810pps

1000M ports: 1,488,095pps

Transmission mode: Store-and-forward

MAC address buffer: 8K

Switching bandwidth: 9.6G

>>Power Requirement

Voltage input: with optional 12/24/48VDC(10.8~52.8VDC)

Redundant dual power input

>>Power Consumption

Fullload: <15W

>>Mechanical Characteristics

IP rating: IP40

Installation: DIN-Rail

>>Dimension

Size(W×H×D): 150 mm×70mm×120mm

>>Environment

Operating temperature: -40℃~85℃

Storage temperature: -40℃~85℃

Relative humidity: 0~95%(non-condensing)

>>Industrial Standards

EMI:

FCC Part 15, CISPR (EN55022) class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
