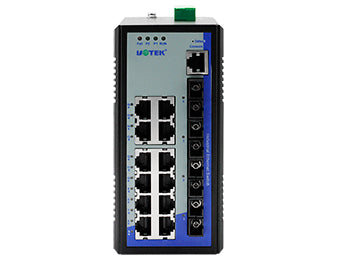

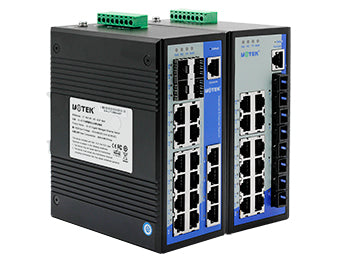

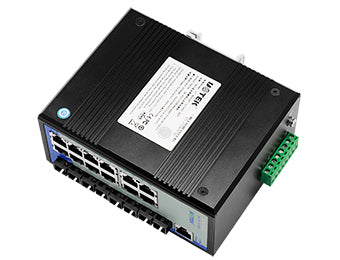

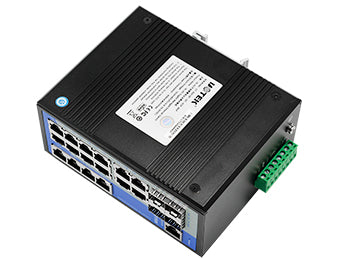

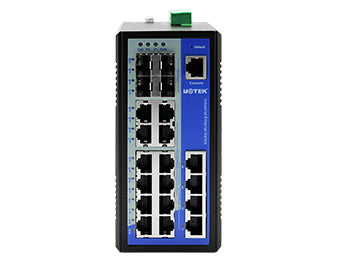

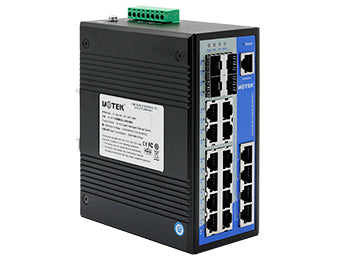

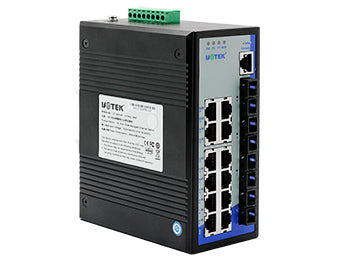

UOTEK UT-62416F 16+4G Gigabit Managed Ethernet Switch

>>Standards & Protocols

Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab,

             IEEE802.3z, IEEE802.1Q, IEEE802.1p,

             IEEE802.1D, IEEE802.1W

Protocol: ICMP, TCP, HTTP, Telnet, UT-Ring, STP/RSTP,

          SNMP, LLDP, IGMP-Snooping, GMRP

Flow control: IEEE802.3x flow control, back pressure flow control

>>Ports

Fiber port: 100Base-FX(SC/FC/ST)

                 1000Base-X(SFP slot)

RJ-45 port: 10/100Base-T(X), auto MDI/MDI-X

>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1310nm 20/40/60Km

                   1550nm 80/100/120Km

Multi-mode: 1310nm 2Km

>>Switching Performance

Forwarding rate:

100M ports: 148,810pps

1000M ports: 1,488,095pps

Transmission mode: store-and-forward

MAC address buffer: 8K

Switching bandwidth: 11.2G

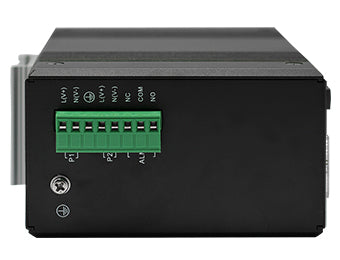

>>Power Requirement

Voltage input:

Option 1: 12/24/48VDC(10.8~52.8VDC)

Option 2: 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC)

Supports dual power input

>>Consumption

Rated power: 20W

>>Mechanical Characteristics

IP rating: IP40

Weight: <2000g

Installation: DIN-Rail

Size: 150 mm×120mm×70mm

>>Environment

Operating temperature: -40℃~75℃

Storage temperature: -40℃~75℃

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI:

FCC Part 15, CISPR (EN55022) class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
