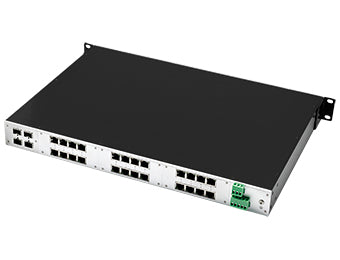

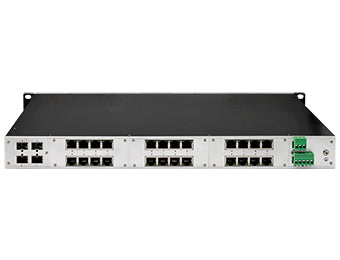

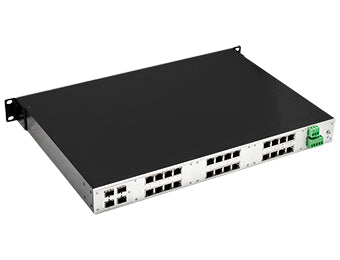

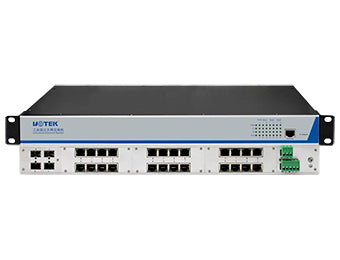

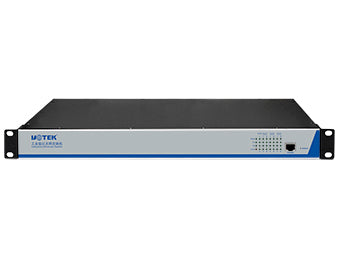

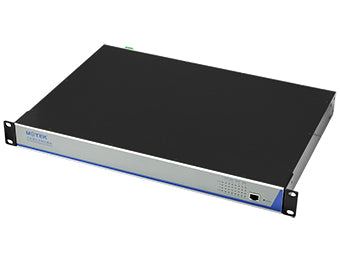

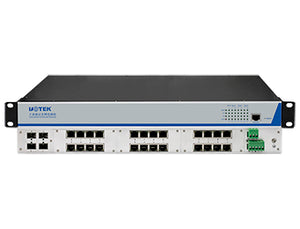

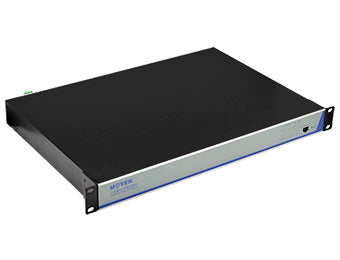

UOTEK UT-62424F 24+4G Gigabit Managed Ethernet Switch

>>Standards & Protocols

Standards:  IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z,

           IEEE802.3ab, IEEE802.1Q, IEEE802.1p,

           IEEE802.1D, IEEE802.1W

Protocol: ICMP, TCP, HTTP, Telnet, UT-Ring, STP/RSTP,

          SNMP, LLDP, IGMP-Snooping, GMRP

Flow control: IEEE802.3x flow control, back pressure flow control

>>Ports

Fiber port: 100Base-FX（SC/FC/ST）

              1000Base-X（SC/FC/ST/SFP slot）

RJ-45 port: 10/100Base-T（X）, auto MDI/MDI-X

>>Transmission Distance

Cat.5e: 100m

>>Fiber Patch Cord

Single-mode: 1310nm   20/40/60Km

                1550nm   20/40/60/80/100/120Km

Multi-mode: 1310nm   2Km

>>Switching Performance

Forwarding rate:

100M: 148, 810pps

1000M：1,488,095pps

Transmission mode: store-and-forward

MAC address buffer: 8K

Switching bandwidth: 12.8G

>>Power Requirement

Voltage input: 110/220VAC(88~264VAC)/50-60Hz or110/220VDC(88~264VDC)

It adopts single power input, with optional dual power redundant input

>>Power Consumption

Rated power: 30W

>>Mechanical Characteristics

IP rating: IP40

Weight: <4440g

Installation: Rackmounted

>>Dimension

Size（W×H×D）: 440mm×44mm×315mm

>>Environment

Operating temperature: -40℃~85℃

Storage temperature: -40℃~85℃

Relative humidity: 0~95%（non-condensing）

>>Industrial Standards

EMI: FCC Part 15，CISPR (EN55022) class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
