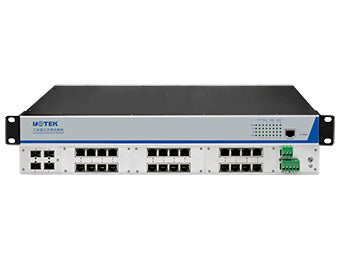

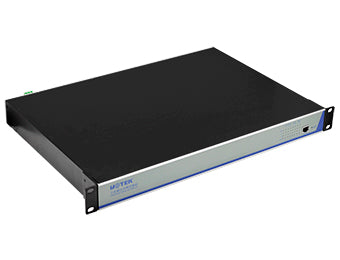

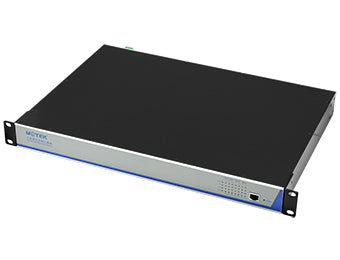

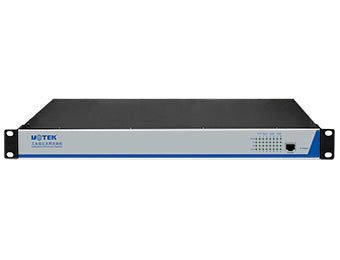

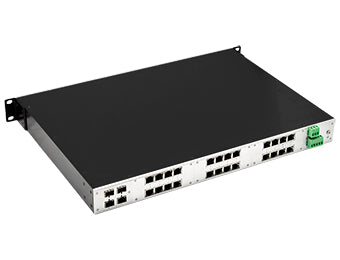

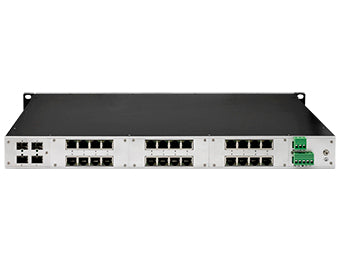

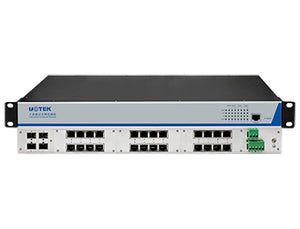

UOTEK UT-62424G 28-Port Full Gigabit Managed Ethernet Switch

>>Standards & Protocols

Standards:  IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z,

                   IEEE802.3ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D,

                   IEEE802.1W, IEEE802.1s, IEEE802.3ad

Protocols: ARP, ICMP, TCP, HTTP, HTTPS , Telnet,

                STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3,

                DHCP Server, NTP, RMON, Syslog

Layer 3 switching technology: Static route, RIP V1/V2, OSPF, VRRP, supports router redundancy

Flow control: IEEE802.3x flow control, back pressure flow control

>>Ports

Fiber ports: 1000Base-X（SC/FC/ST/SFP slot）

RJ45 ports: 10/100/1000Base-T(X)，auto MDI/MDI-X

>>Transmission Distance

Cat.5e: 100m

>>Fiber Patch Cord

Single-mode: 1,310nm   20/40/60Km

                     1,550nm   20/40/60/80/100/120Km

Multi-mode:   1,310nm   2Km

>>Switching Performance

Forwarding rate: 1,488,095pps

Transmission mode: store-and-forward

MAC address buffer: 8K

Switching bandwidth: 56G

>>Power Requirement

Voltage input: 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC)

It adopts single power input, with optional dual power redundant input

>>Power Consumption

Rating power: 30W

>>Mechanical Characteristics

IP rating: IP40

Weight: <4440g

Installation: rackmount

>>Dimension

Size(W×H×D): 440mm×44mm×315mm

>>Environment

Operating temperature: -40℃~85℃

Storage temperature: -40℃~85℃

Relative humidity: 0~95%(non-condensing)

>>Industrial Standards

EMI:

FCC Part 15, CISPR (EN55022) class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
