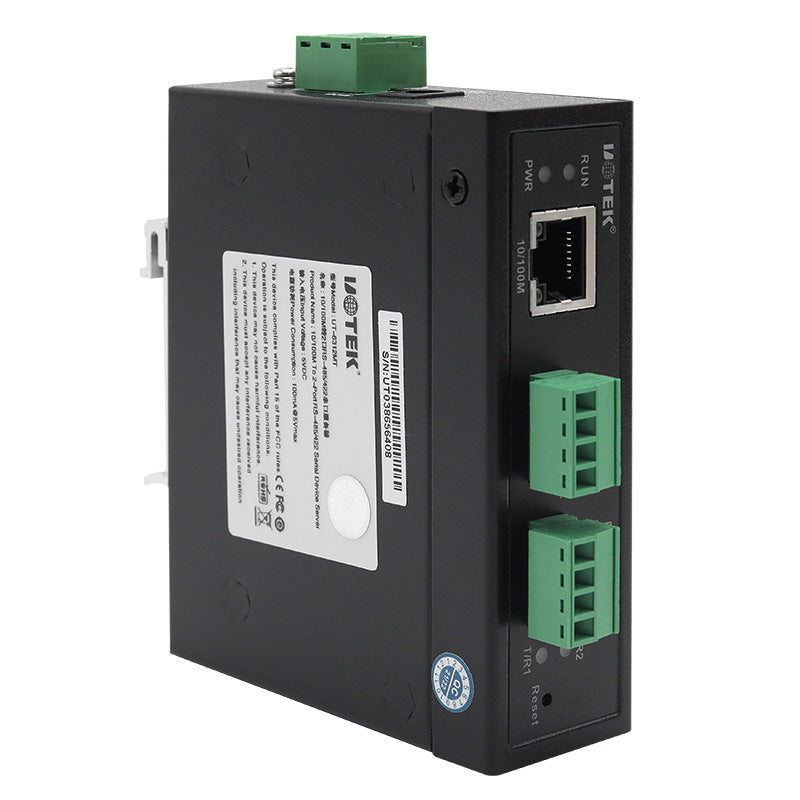

UOTEK UT-6312MT 10/100M to 2 Ports RS-232/485/422 Serial Device Server

• Bidirectional data transmission over Ethernet and RS-232/485/422/TTL
• Integrated 2 RS-232/485/422/TTL communication interface, supporting 300bps-921600bps communication rate
• Integrated 1 10M/100M Ethernet interface

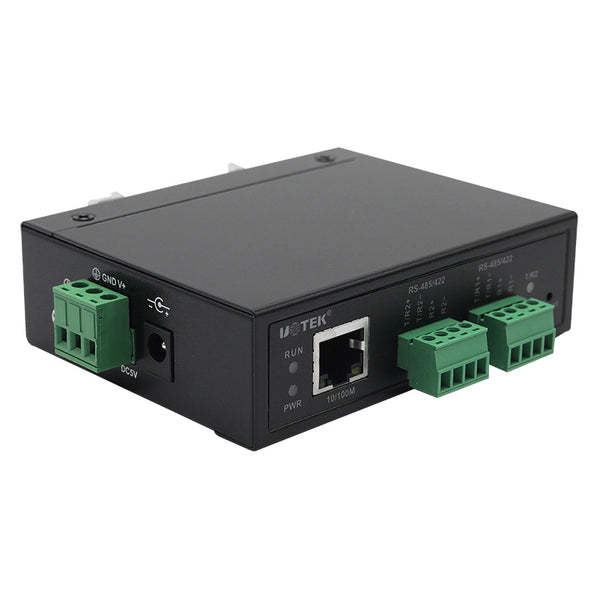

• Power supply interface: DC-JACK, 5.08-3P Phoenix terminal
• Parity bit：None,Odd,Even
• Data bit 5, 6,7,8
• Stop bit 1, 1.5, 2
• Flow control RTS/CTS, XON/XOFF
• Working voltage: DC 5V±5%
• Working current: ≤ 90mA@5V
• Operating temperature: -40~85°C
• Storage temperature: -40~85°C
• Operating humidity: 5~95% (no condensing)
• Storage humidity: 5~95% (no condensing)
• Electrostatic protection: air 4kV, contact 4kV
• Surge protection: Serial port 600W

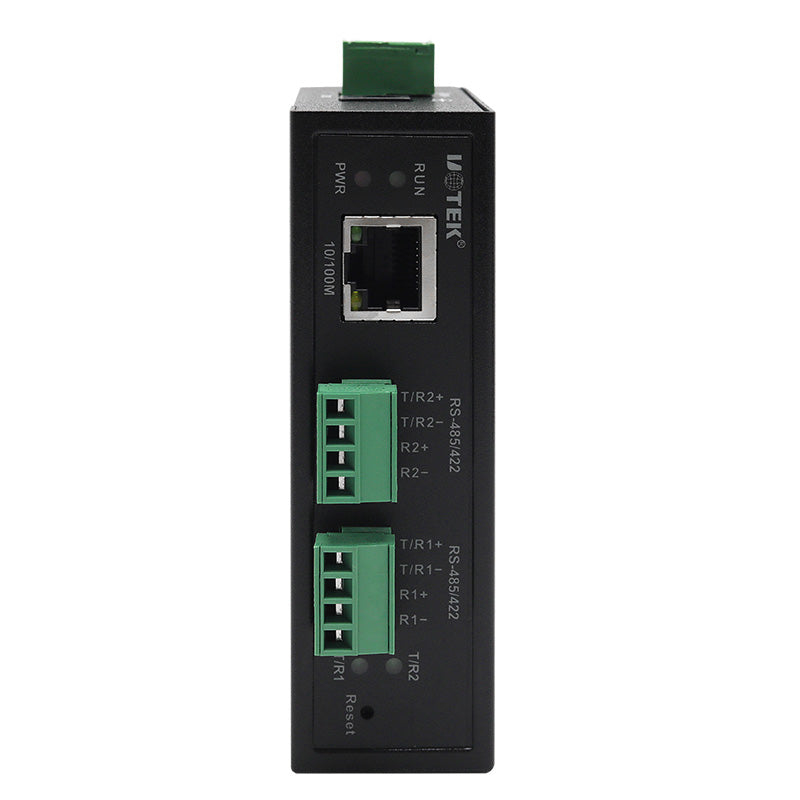

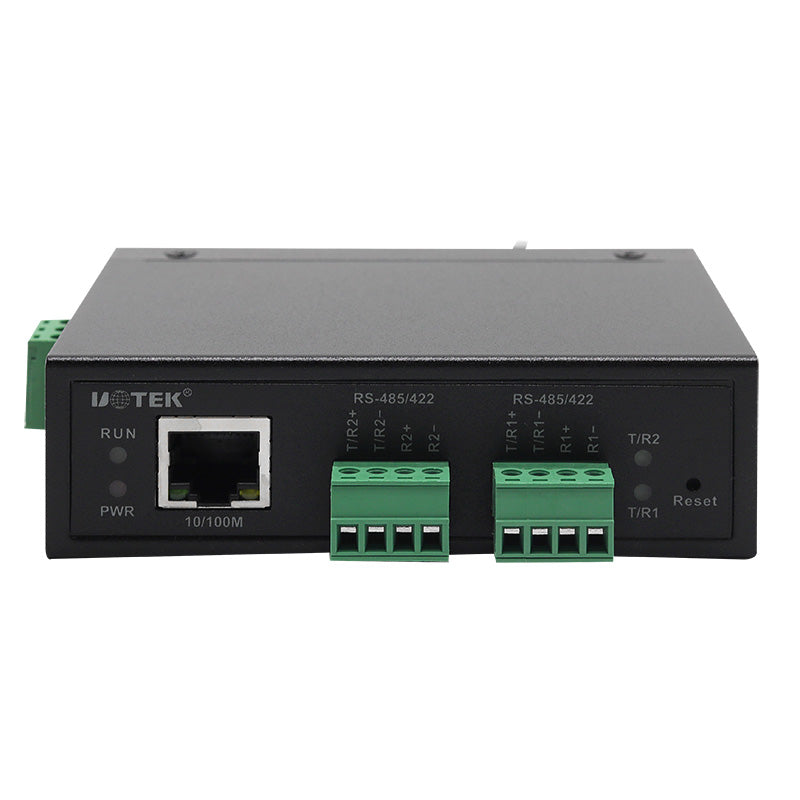

>> Indicator Light

• PWR: red, power indicator; long light when power supply is normal.
• RUN: green, system operation indicator; flashes when the system is running normally.
• T/R1: green, communication indicator; light is on when serial port 1 sends or receives data; off when sending or receiving is complete
• T/R2: green, communication indicator; when serial port 2 sends or receives data, the indicator is on; off when sending or receiving is complete
