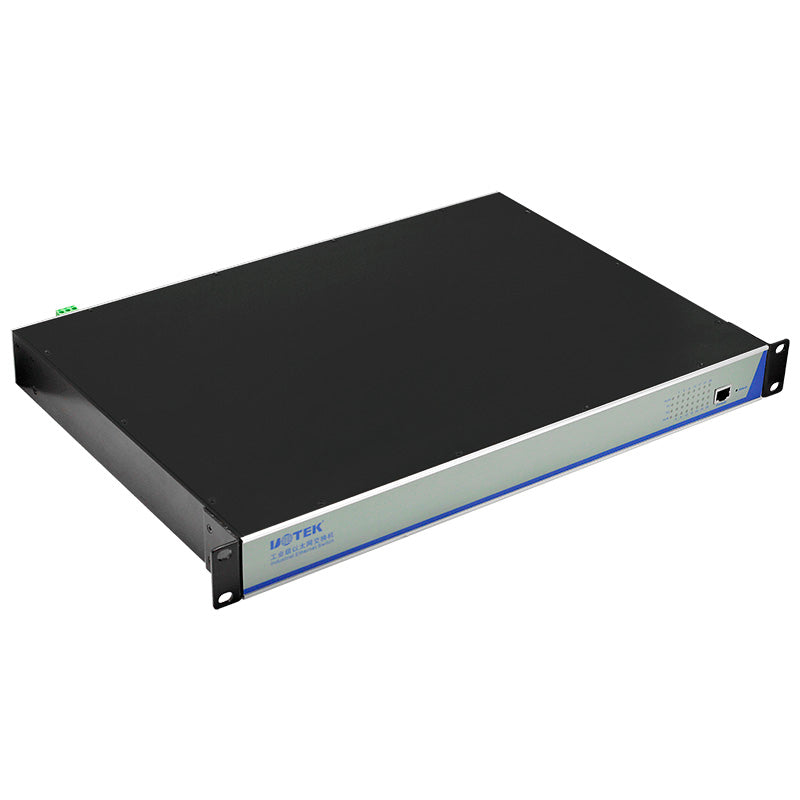

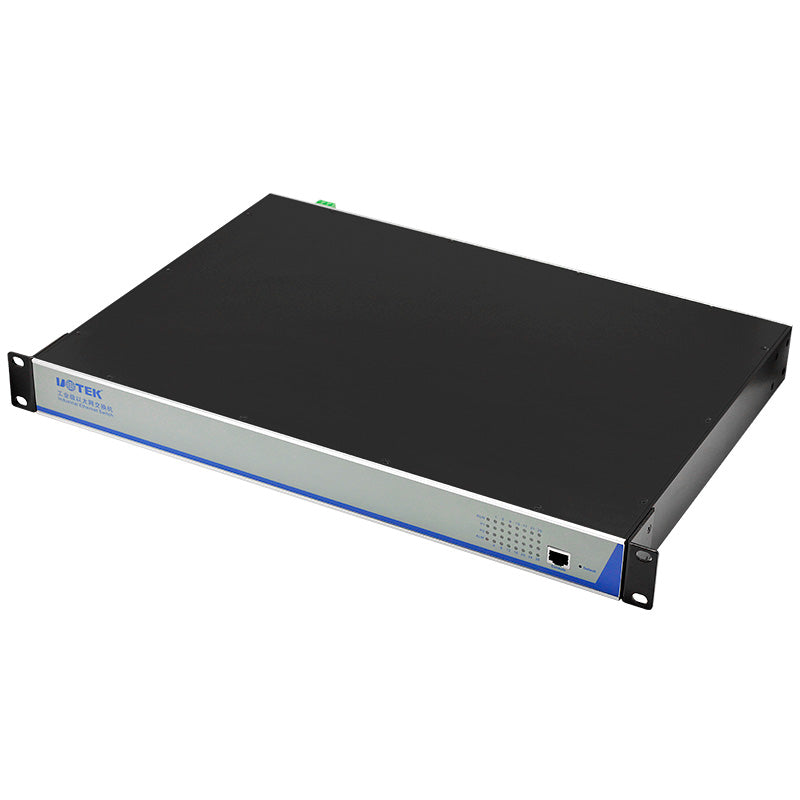

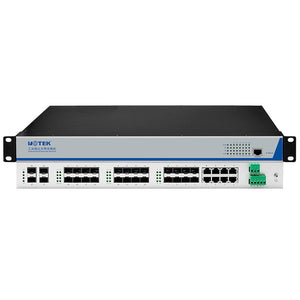

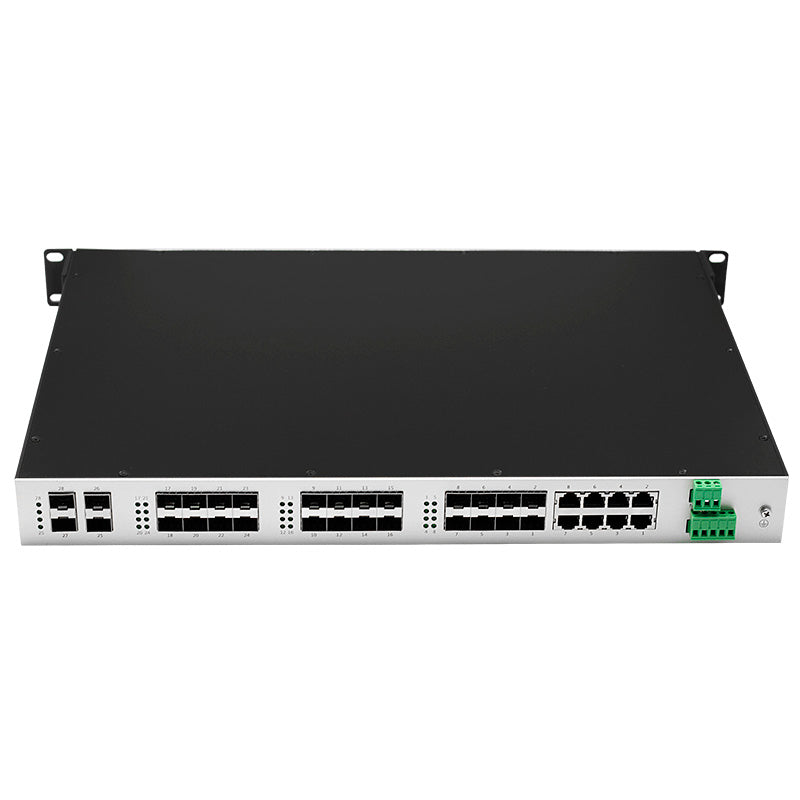

UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch
UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch
UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch
UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch
UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch
UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch
UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch
UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch
UTEK Technology

UOTEK UT-63424G 10 Gigabit Layer 3 Managed Ethernet Switch

$1,538.08 $2,381.00
Tax included. Shipping calculated at checkout.
  • Support 16 Gigabit SFP network interfaces (or 16 Gigabit Ethernet interfaces) + 4 10Gbps SFP+ interfaces + 8 Gigabit Combo ports
  • 10Gbps SFP+ interface supports 10Gigabit/Gigabit adaptive
  • Support IGMP Snooping/MLD Snooping to filter multicast packets
  • IEEE 802.1Q VLAN support for easy network planning
  • Supports QoS with 8 queue mapping to increase network stability
  • Support STP/RSTP and MSTP network redundancy
  • Support SNMPv1/v2v3 to ensure network security management
  • Supports link aggregation (static convergence/LACP) to optimize network bandwidth
  • Support Access Control List (ACL) to enhance flexibility and network management security
  • Support port mirroring function for online debugging
  • Support port speed limit\broadcast storm suppression\multicast storm suppression\unknown unicast storm suppression
  • Support Layer 3 switching function (static route/Rip/OSPF/VRRP)
  • Support power supply, port abnormal state relay output alarm function
  • Operating temperature: -40~75°C
  • Support IP40 protection, fan-less, industrial grade, rack-mounted design

>>Protocol Standards

Standard: IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3z,IEEE802.3ab,IEEE802.1Q,IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x, IEEE802.3ae

Protocol: RP, ICMP, TCP, HTTP/HTTPS,Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, NTP, SSH, IPV6, LACP, VLAN

Flow control: IEEE802.3x flow control, backpressure flow control

Layer 3 switching technologies: static routing, RIP V1/V2, OSPF, VRRP support Router redundancy

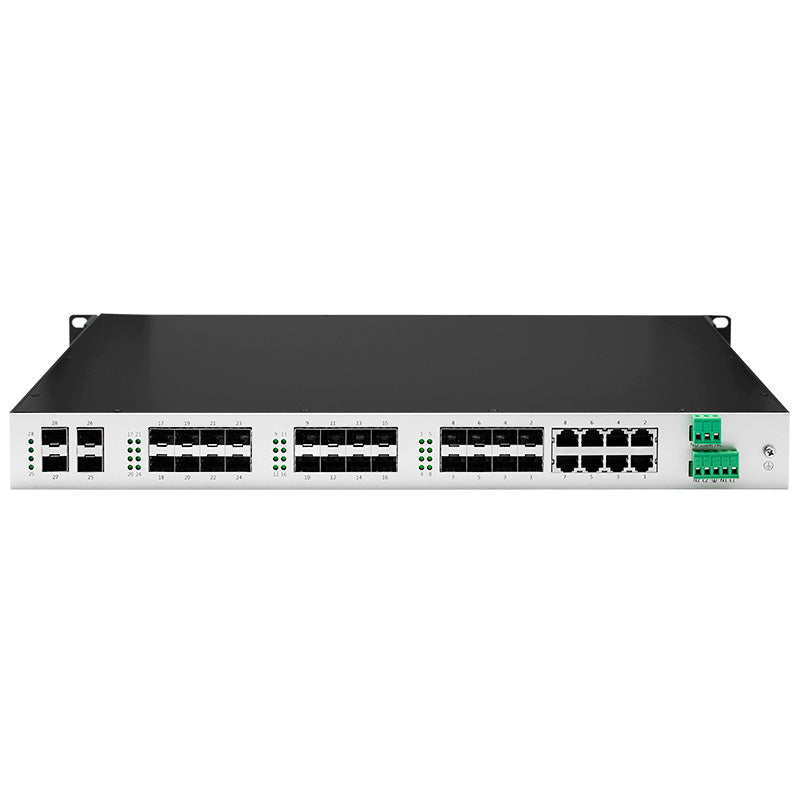

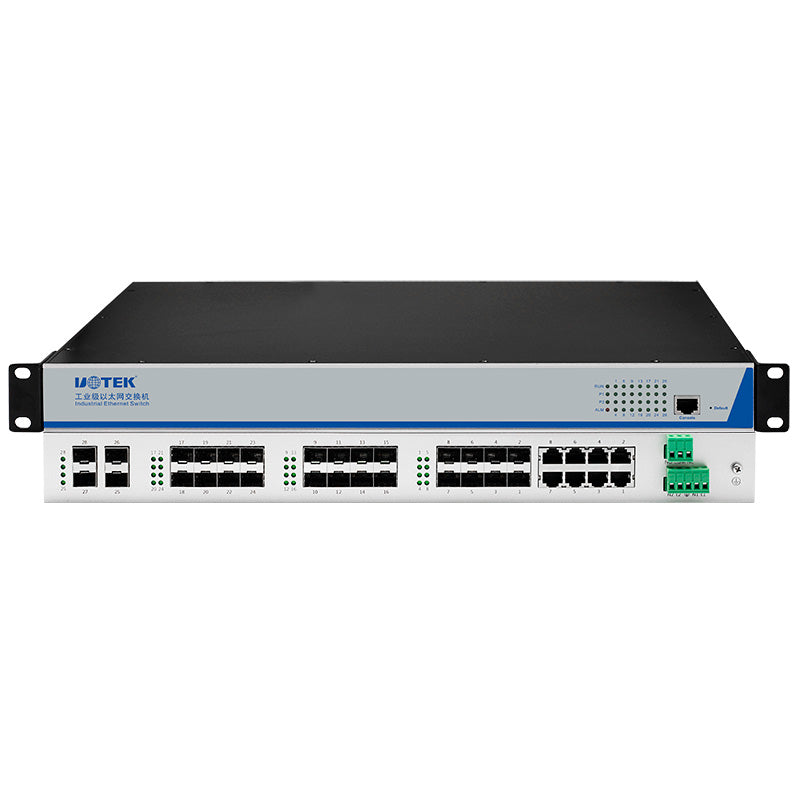

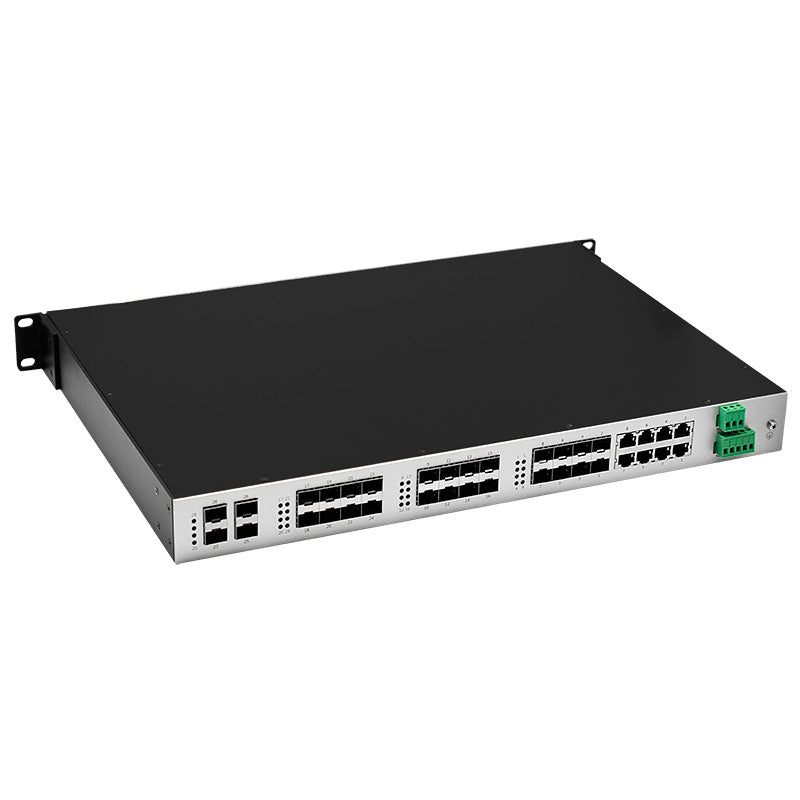

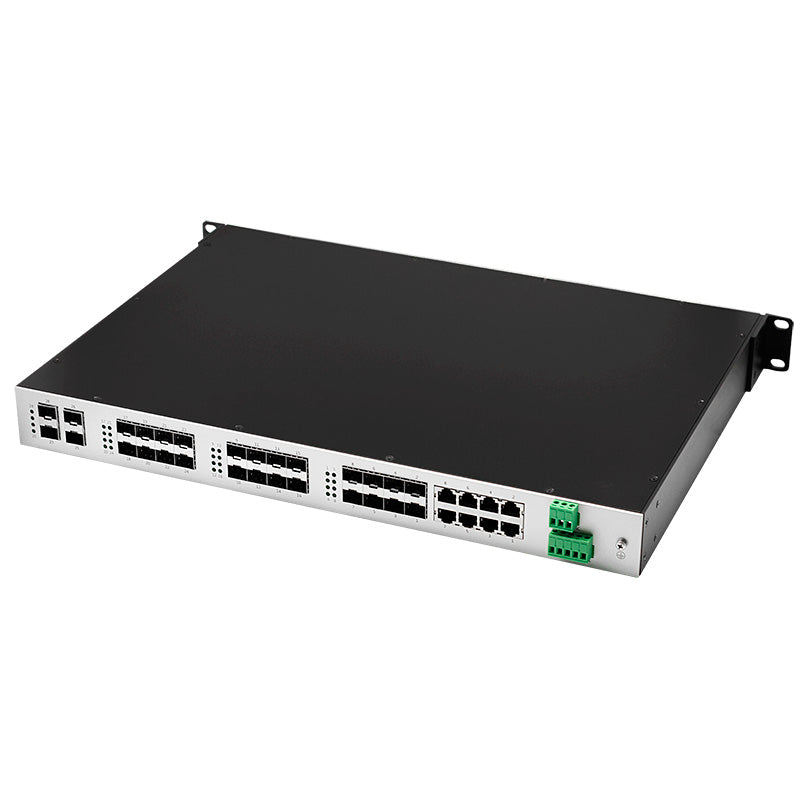

>>Interfaces

Fiber interface: 100/1000BaseX, SFP (interface)

             1G/10Gbps SFP+ (10 Gigabit SFP)

RJ45 interface: 10/100/1000Base-T, auto-MDI/MDI-X

Console port: serial port debugging (RJ45 interface)

Alarm port: 3PIN terminal, relay alarm information output

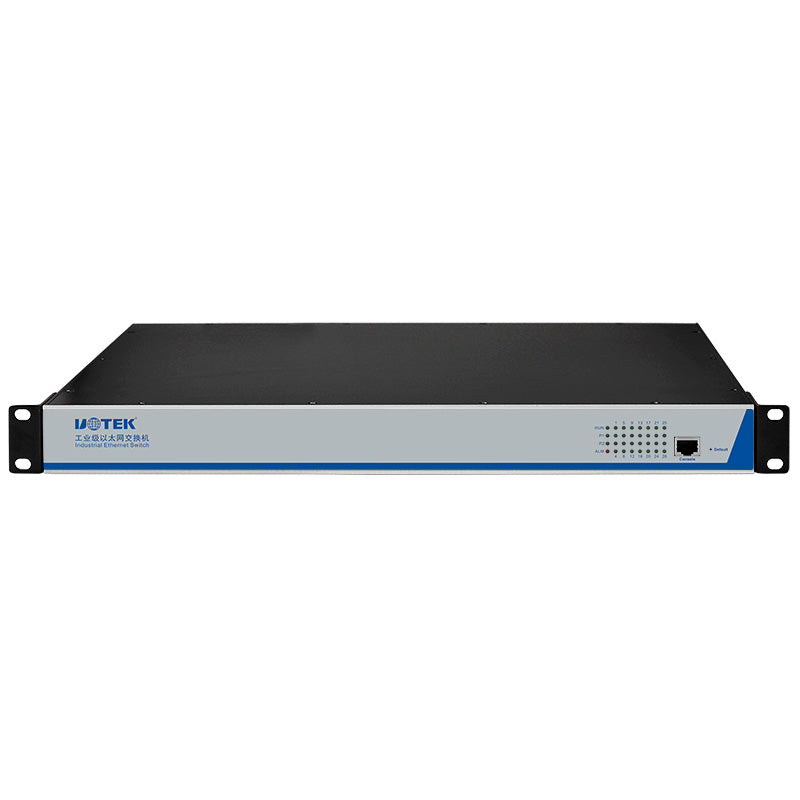

>>LED indicator light

power indicator, network indicator, alarm indicator, operation indicator


>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1310nm 20/40/60Km

           1550nm 80/100/120Km

Multi-mode: 1310nm 2Km


>>Switching Performance

100M ports: 148,810pps

1000M ports: 1,488,095pps

10 Gigabit port: 14,881,000pps

Transmission mode: store and forward

MAC address size: 16K

Cache size: 12Mb

Backplane bandwidth: 208G

Max. frame length: 9216B

Host unicast routing: 1024 (IPv4), 512 (IPv6)

Segment unicast routing: 512 (IPv4/IPv6)


>>Power Requirement

Input voltage: 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC)

The device selects single power input, optional dual power redundant input


>>Power Consumption

UT-63424G-16GP8GB-4XGP-BNA:

No-load power: 14.5W

Full load power: 39W (Combo port is optical port)

UT-63424G-16GT8GB-4XGP-BNA:

No-load power: 10.3W

Full load power: 24W (Combo port is optical)


>>Mechanical Characteristics

IP protection level: IP40

Installation: Rack-Mounted


>>Mechanical Dimension

Dimension (W x H x D): 440mm x 44mm x 315mm

Weight: 3.5Kg


>>Operating Environment

Operating temperature: -40 ~ 75°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)


>>Industrial Standards

EMI：FCC Part 15，CISPR (EN55022) class A
EMS：
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
