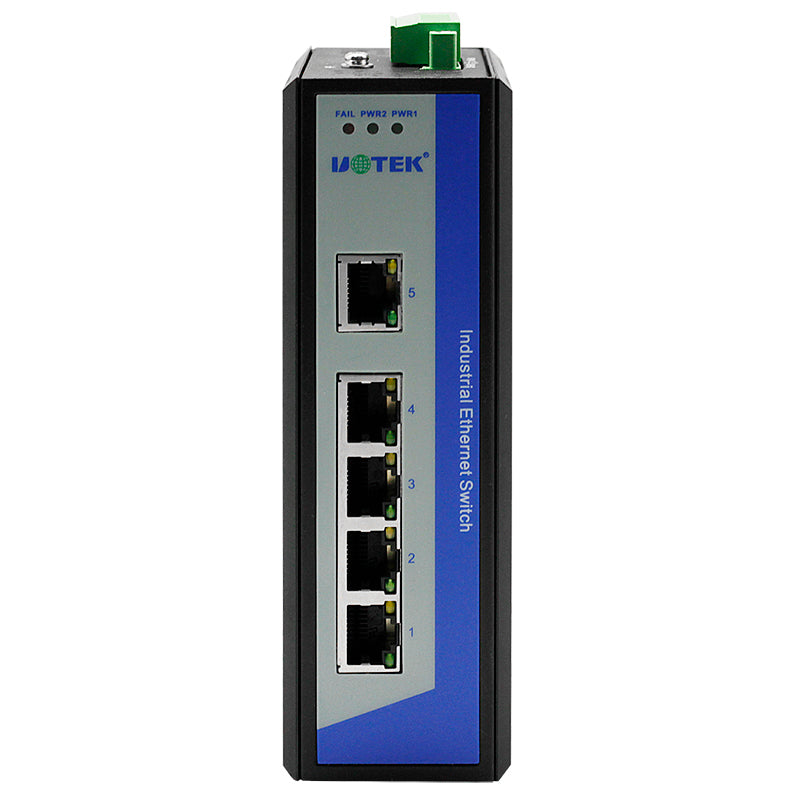

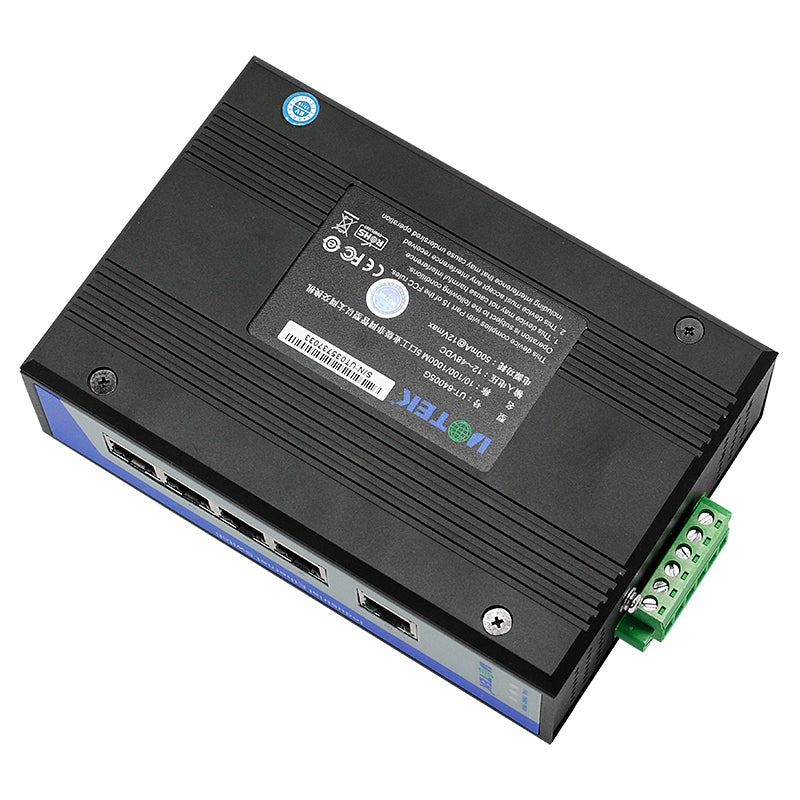

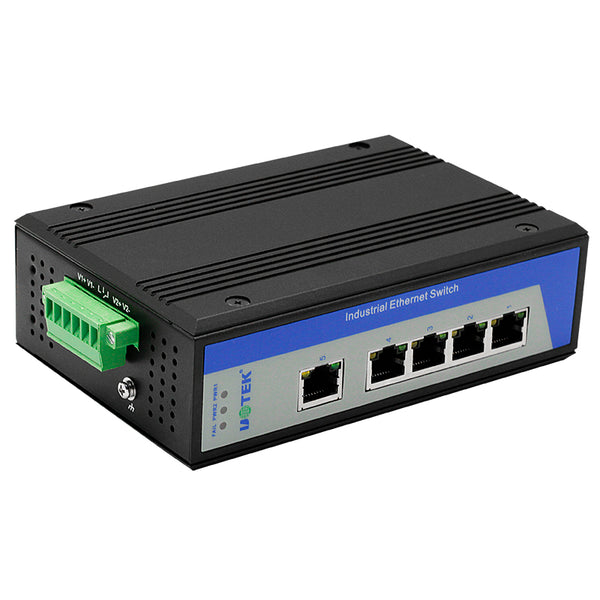

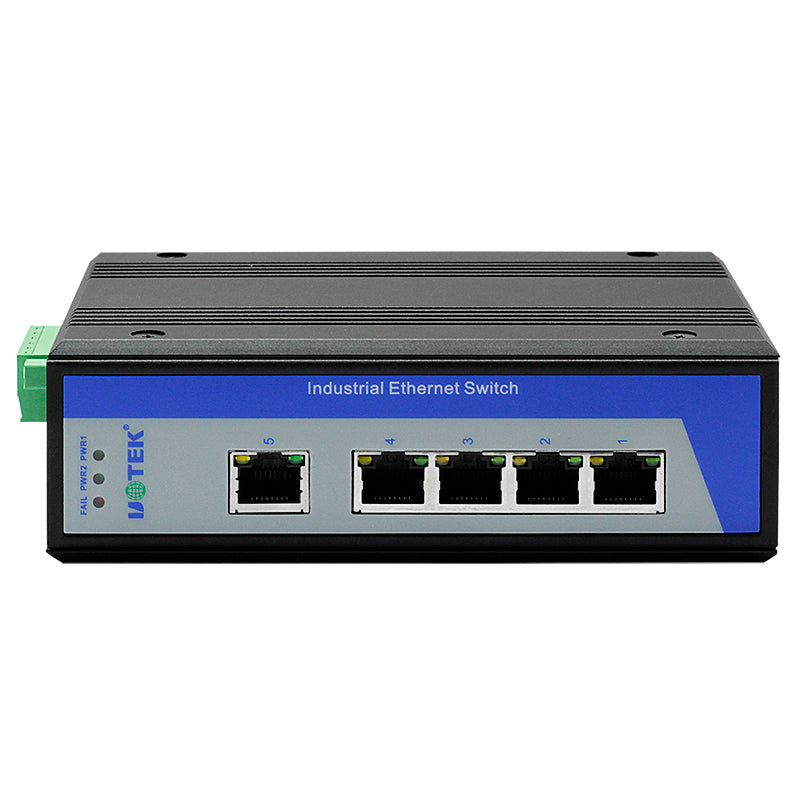

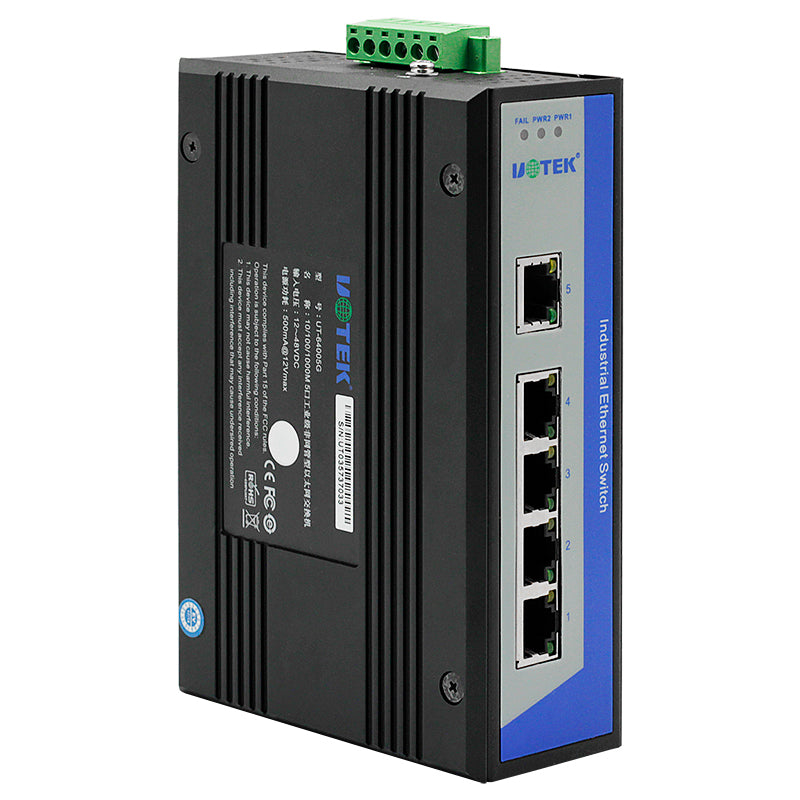

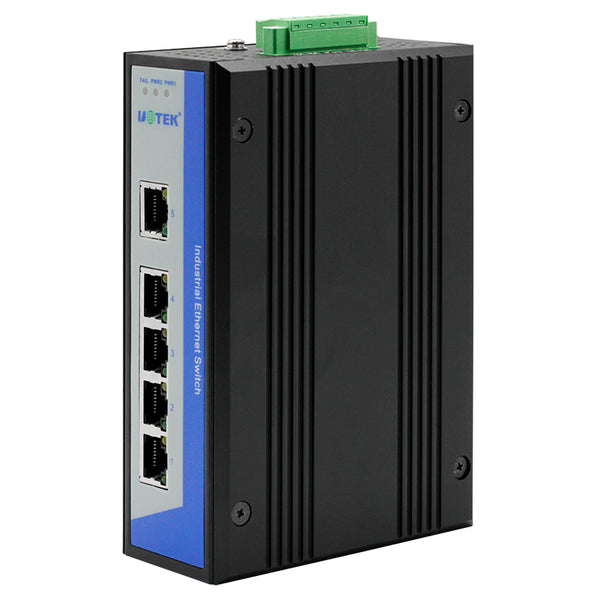

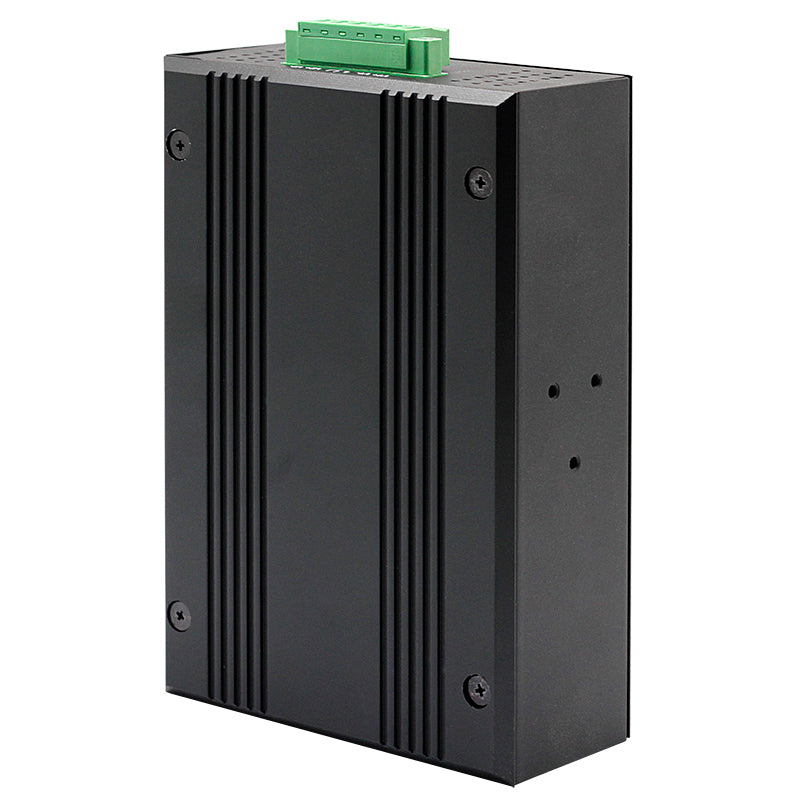

UOTEK UT-64005G 5-Port Full Gigabit Ethernet Switch

>>Standards
IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T(X) & 100Base-FX

IEEE 802.3ab 1000Base-T(X)

>>Ports
Gigabit Ethernet: 5x 1000M RJ-45 ports, supports 10/100/1000Base-T(X)

LED indication: PWR1, PWR2, FAIL,RJ-45 indicator

Alarm contact: 1-ch relay output, NONC, capacity 1A @ 24VDC

>>Power requirement
Voltage input: DC 12/24/48V, redundant power input

Power consumption: max. 5 Watts

Surge protection(Ethernet): ±8KV contact discharge

                         ±15KV air discharge

Lightning surge protection(Ethernet): common mode±4KV(10/700μs)

                                  Differential mode ±2KV(10/700μs)

Lightning surge protection(power): 5000A(8/20μs)

Terminal block: 1x pluggable 6-pin terminal block

Overload protection: Support

Reverse polarity protection: Support

>>Mechanical characteristics

IP rating: IP30 protection

Installation: DIN-Rail/wall-mounted(DIN-Rail default)

Dimension(W x H x D)：150mm×47.6mm×100mm

>>Environment
Working temperature: -40℃～85℃

Storage temperature: -40℃～85℃

Relative humidity: 5～95% (non-condensing)

>>Industrial standards
EMI: FCC Part 15 Subpart B classA, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD), level 4

IEC(EN)61000-4-3(RS), level 3

IEC(EN)61000-4-4(EFT), level 4

IEC(EN)61000-4-5(Surge), level 4

IEC(EN)61000-4-6(CS), level 3

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
