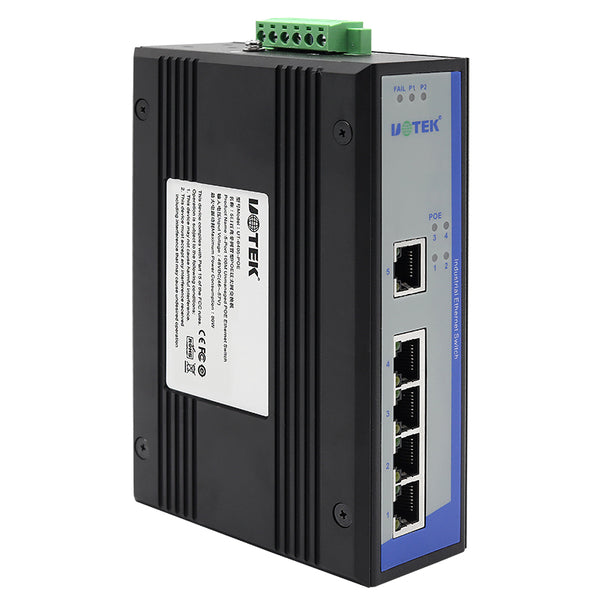

UOTEK UT-6405-POE 10/100M 5-Port POE Ethernet Swtich
>>Protocol Standards
IEEE 802.3af/at, IEEE802.3, IEEE802.3u
Flow control:IEEE802.3x flow control, backpressure flow control
>>Interfaces
Fiber interfaces: 100Base-FX (SC/FC/ST/SFP slot)
RJ45 interface: 10/100Base-T(X)4 of them support POE output POE pins: V+ ,V+, V-,V- corresponding to the array of pins 1,2,3,6 (default)
LED indicators: power, optical port, RJ-45
Alarm and POE Indicator.
>>Transmission Distance
Cat.5e: 100m
Fiber Patch Cord
Single-mode: 1,310nm 20/40/60Km
1,550nm 80/100/120Km
Multi-mode: 1,310nm 2Km
Backplane bandwidth: 2G
>>Switching Performance
Forwarding rate: 148810pps
Transmission mode: store and forward
MAC address size: 1K
Cache size: 0.5Mbit
Backplane bandwidth: 1.2G
>>Power Requirement
Input voltage: 48VDC(46~57),redundant dual voltage inputs
Interface terminal: 1 pluggable 6-pin terminal block
>>Power Consumption
single POE network interface up to 30W, the total power consumption no more than 80W
>>Operating Environment
Operating temperature: -40 ~ 75 °C
Storage temperature: -40 ~ 85 °C
Relative humidity: 0~95% (non-condensing)
>>Mechanical Dimension
Dimension(W x H x D): 150mm x 47.6mm x 100mm
Package dimension: 250mm x 205mm x 55mm
Weight: 830g
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail /Wall Mounted
>>Industrial Standards
EMI:
FCC Part 15, CISPR(EN55022)class A
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC60068-2-27( Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
