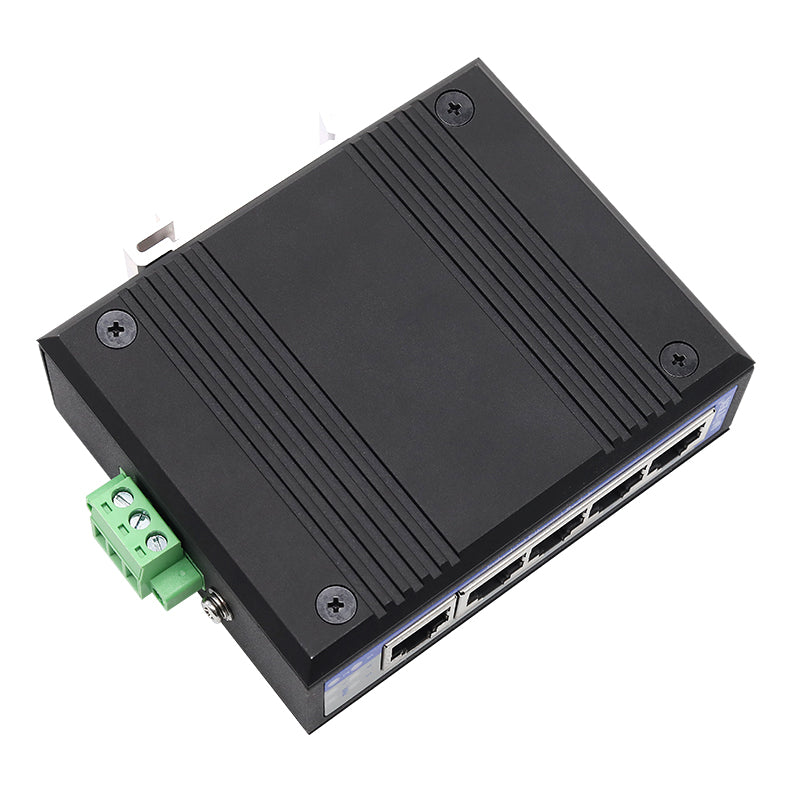

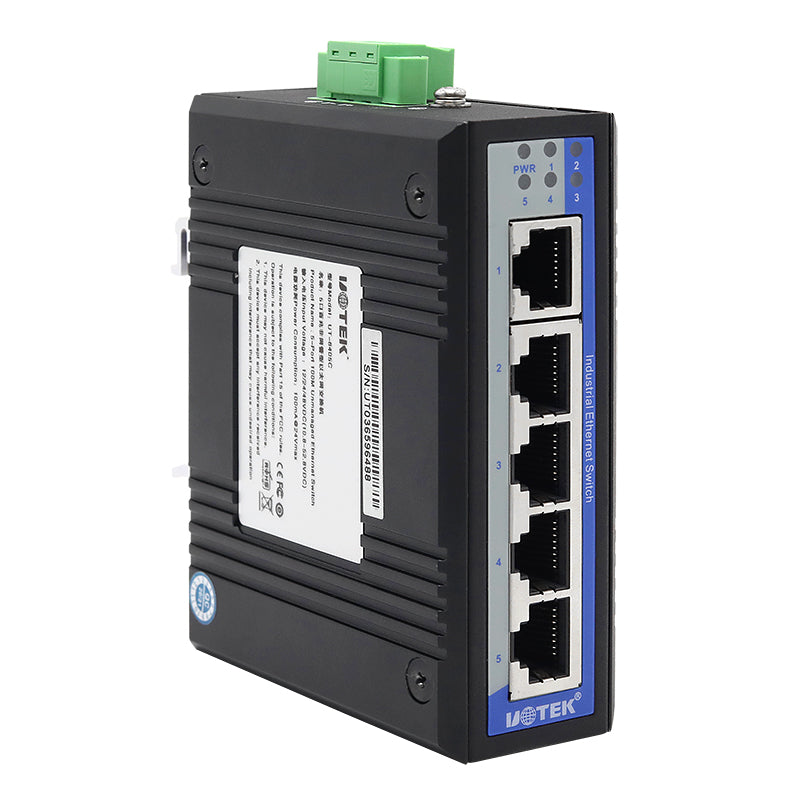

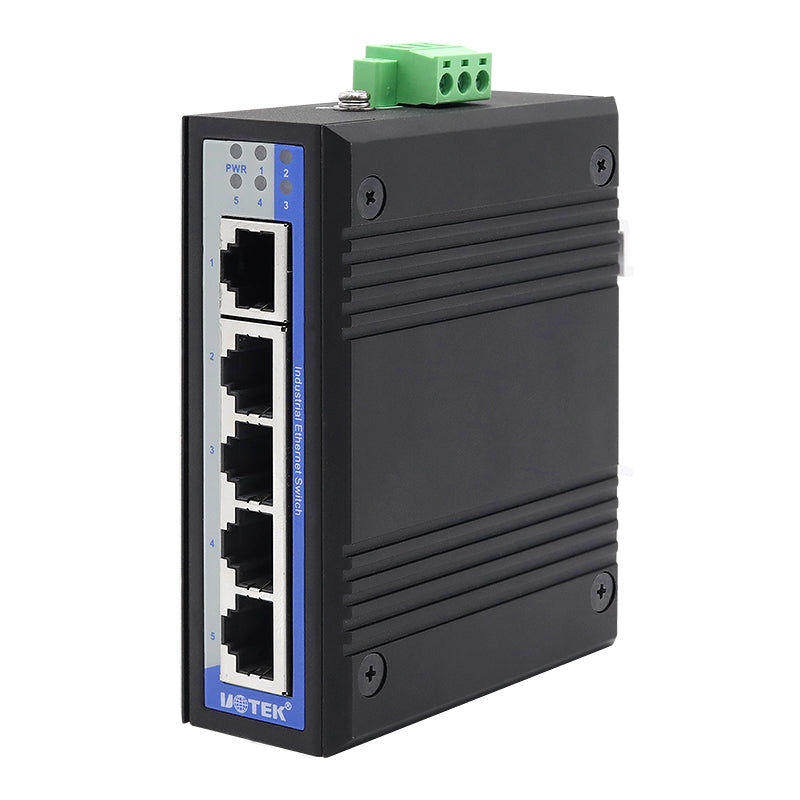

UOTEK UT-6405C 100M 5-port Unmanaged Ethernet Switch

>>Protocol Standards

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

>>Interfaces

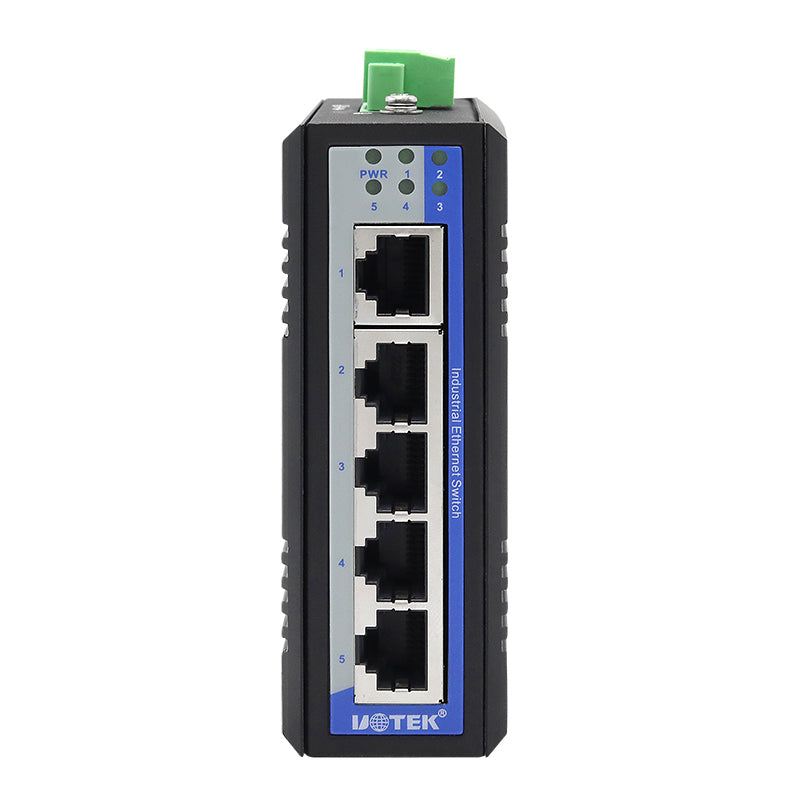

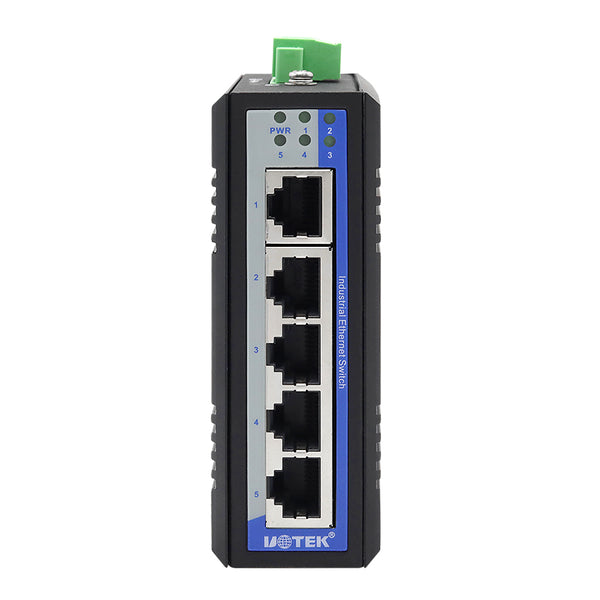

RJ45 ports: 5 10/100Base-T (X) ports, auto-detection, full/half duplex, auto MDI/MDI-X

>>LED indicator light

PWR power light, network indicator

>>Power Requirement

Input voltage: 12/24/48VDC(10.8~52.8VDC)

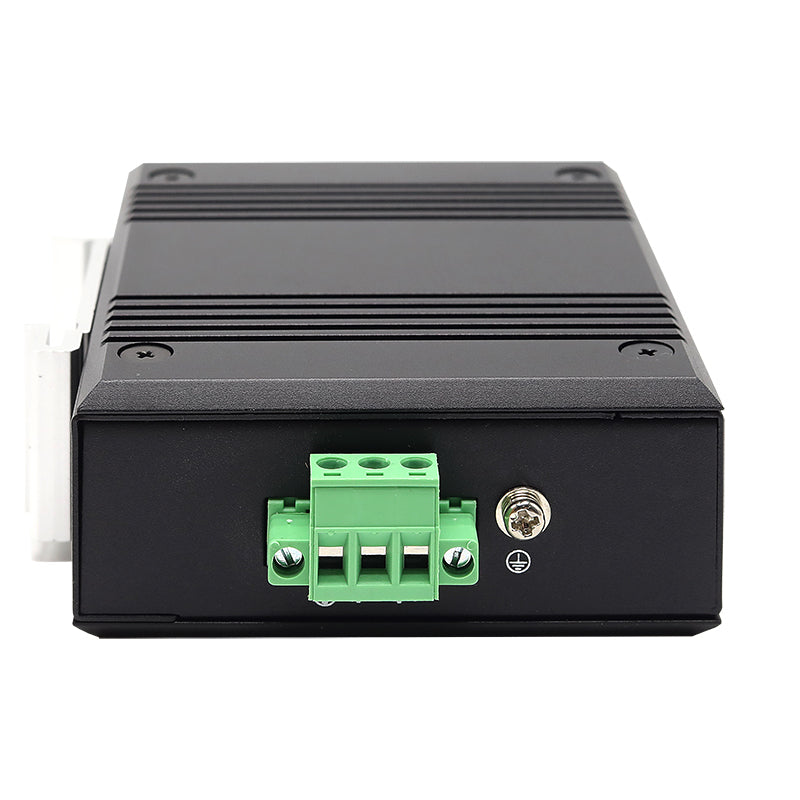

Interface terminal: 1 pluggable 3-pin terminal

Overload protection: Support

Reverse connection protection: Support

>>Consumption

Power consumption: 100mA@24Vmax

>>Switching Performance

Forwarding rate: 148810pps

Transmission mode: store and forward

MAC address size: 1K

Cache size: 448Kb

Backplane bandwidth: 1.6G

>>Mechanical Characteristics

IP protection level: IP40

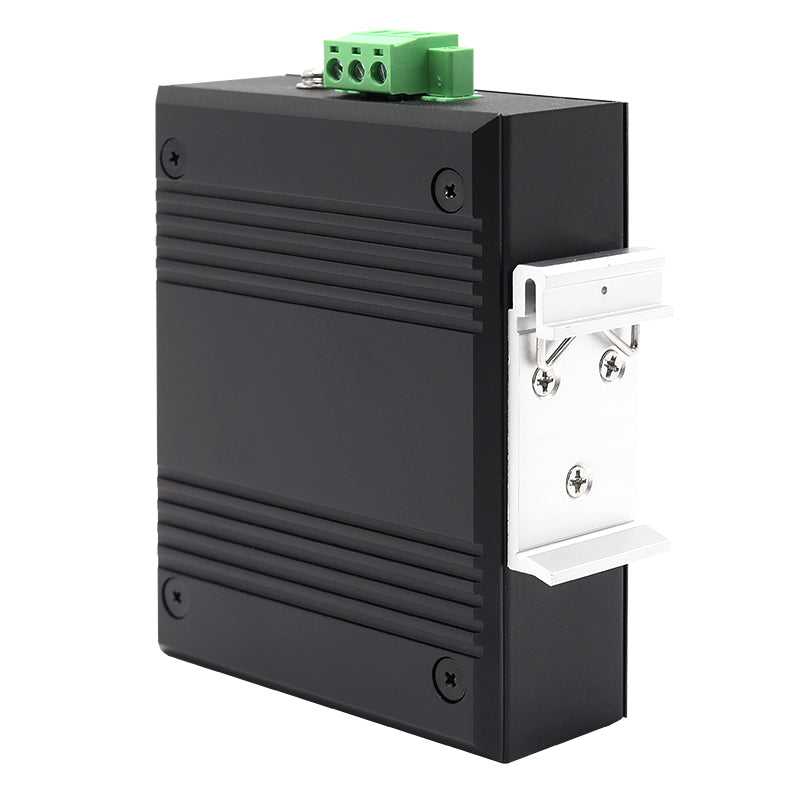

Installation: DIN-Rail Mounted

>>Mechanical Dimension

Dimension (W x H x D): 180mm x 140mm x 45mm

Weight: 560g

>>Operating Environment

Operating temperature: -20~75°C

Storage temperature: -40~85°C

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA͘EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
