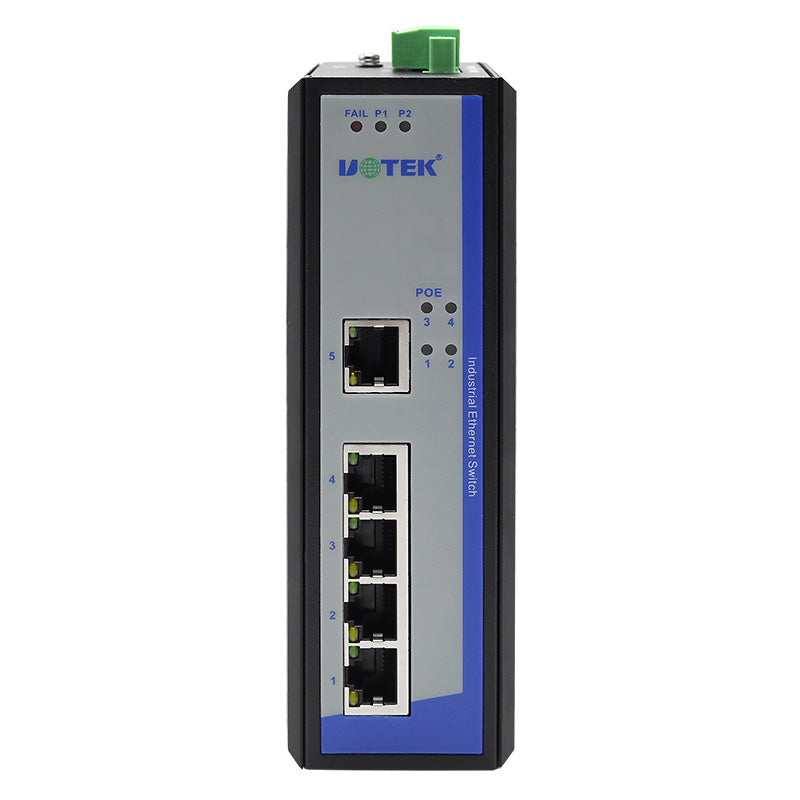

UOTEK UT-6405G-POE Gigabit POE Unmanaged Ethernet Switch

>>Protocol Standards

Standard: IEEE 802.3af/at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Flow comtrol: IEEE802.3x flow control, backpressure flow control

>>Interfaces

Fiber interfaces: 1000Base-X (SC/FC/ST/SFP slot)

RJ45 interface: 10/100/1000Base-T, support 4 port POE output

POE pin: V+,V+,V-,V- corresponding footage1,2,3,6 (Default)

>>LED indicator light

Power indicator light,  Power Indicator, Optical Port Indicator, RJ-45 Indicator, Alarm Indicator, POE Indicator

>>Transmission Distance

Cat.5e: 100m

Fiber Optic Module

Single-mode: 1310nm 20/40/60Km

           1550nm 80/100/120Km

Multi-mode: 1310nm 2Km

>>Switching Performance

Forwarding rate: 1488095pps

Transmission mode: store and forward

MAC address size: 1K

Cache size: 1Mb

Backplane bandwidth: 12G

Max. frame length: 10KB

>>Power Requirement

Voltage input: 48 VDC (46-57V), redundant dual power input

Interface terminal: One pluggable 3-pin terminal block

>>Consumption

Max. consumption power for each port about 30 W, total power consumption no more than 80W.

>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail /Wall Mounted

>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Package dimension: 250mm x 205mm x 55mm

Weight: 0.83kg

>>Operating Environment

Operating temperature: -40~75°C

Storage temperature: -40~85°C

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI ：

FCC Part 15，CISPR (EN55022) class A

EMS：

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
