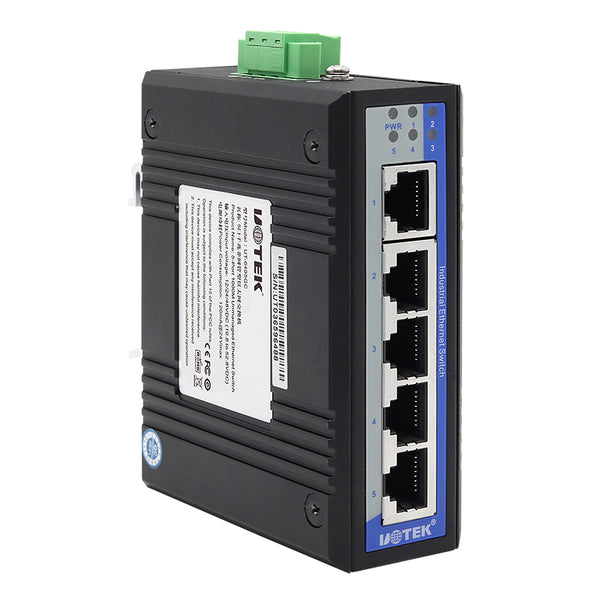

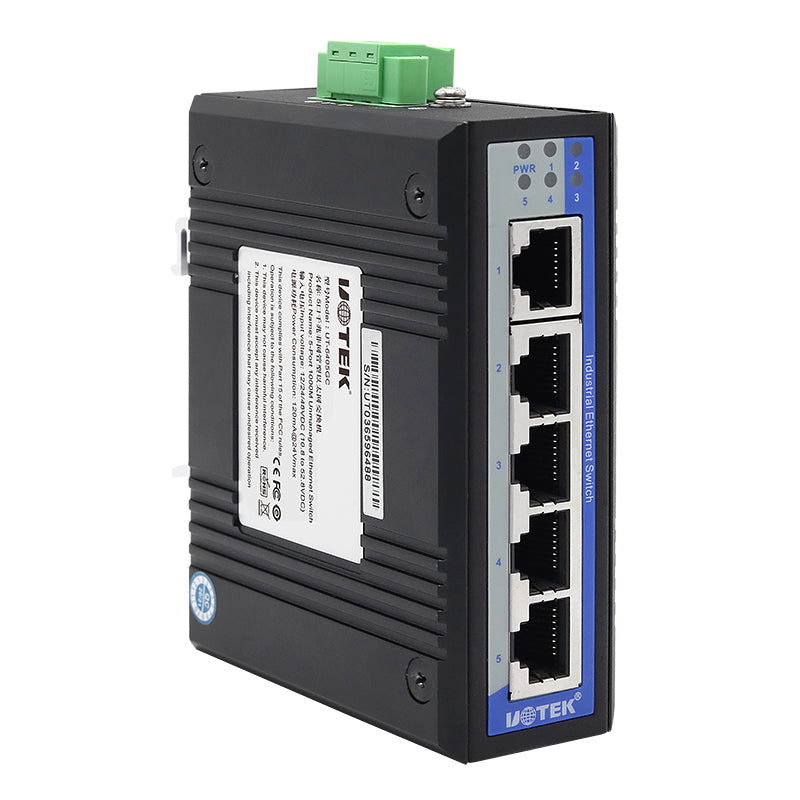

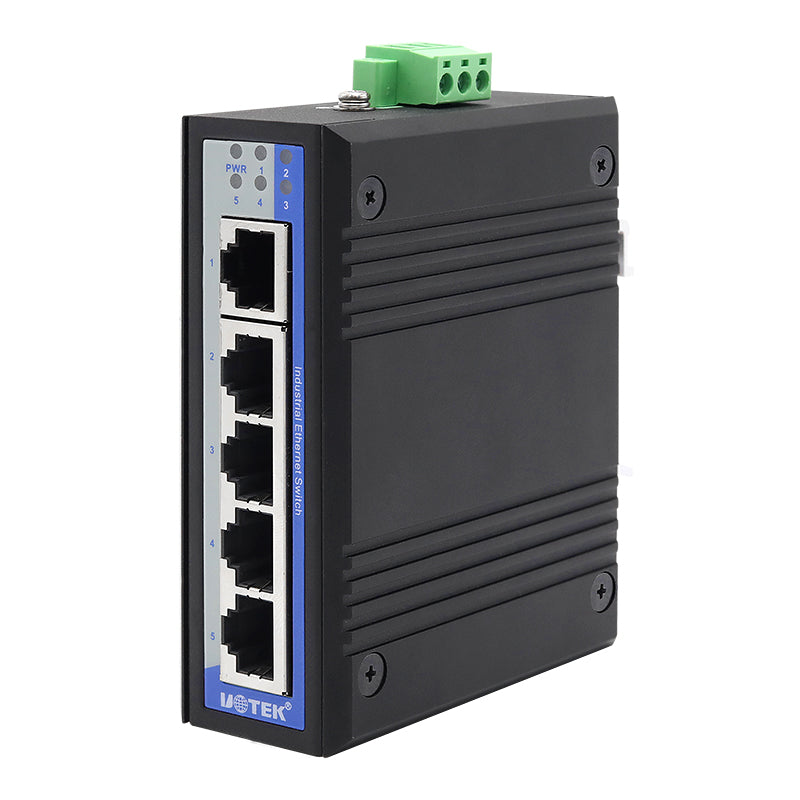

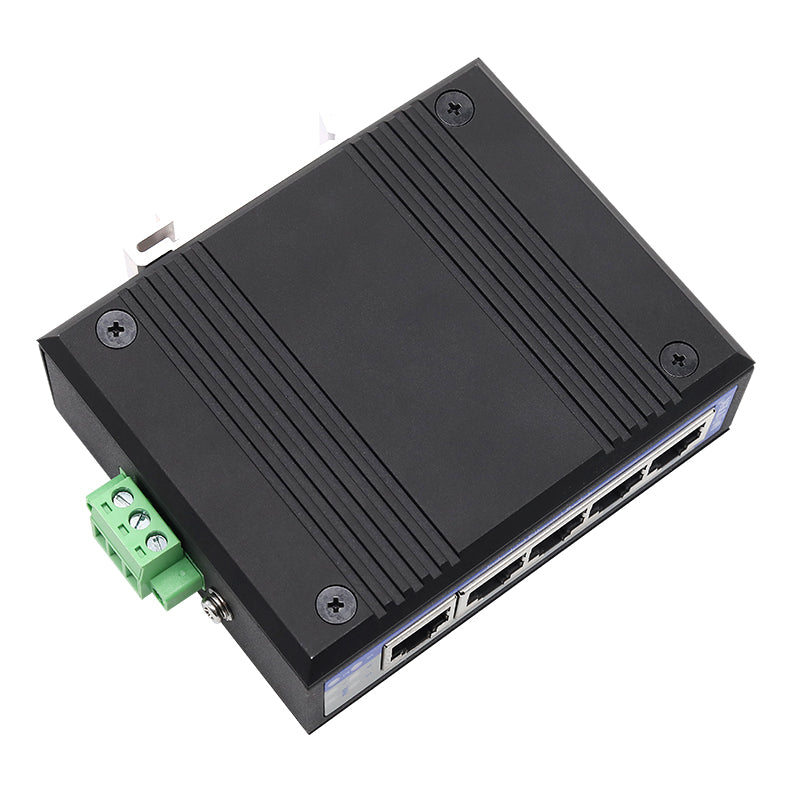

UOTEK UT-6405GC Gigabit 5-Port unmanaged Ethernet Switch

>>Protocol Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3ab 1000Base-T, IEEE 802.3x

>>Interfaces

Gigabit Ethernet: 5*Gigabit RJ45, support 10/100/1000Base-T

>>Switching Performance

Forwarding rate: 1488095pps

Transmission mode: store and forward

MAC address size: 2K

Cache size: 1Mb

Backplane bandwidth: 10G

Max. frame length: 16KB

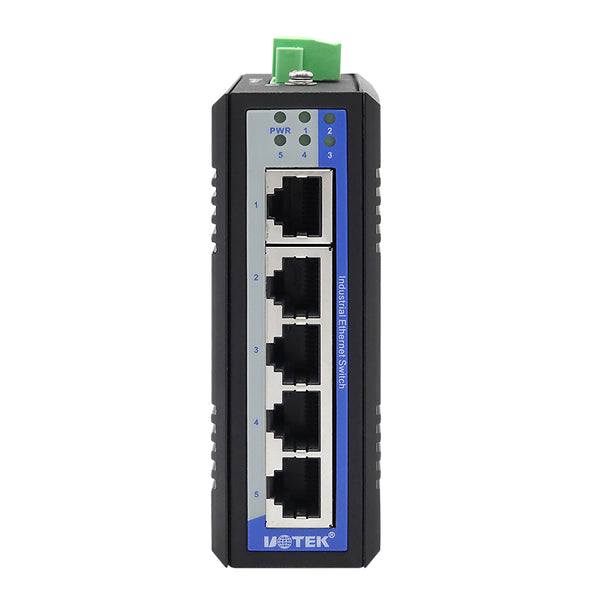

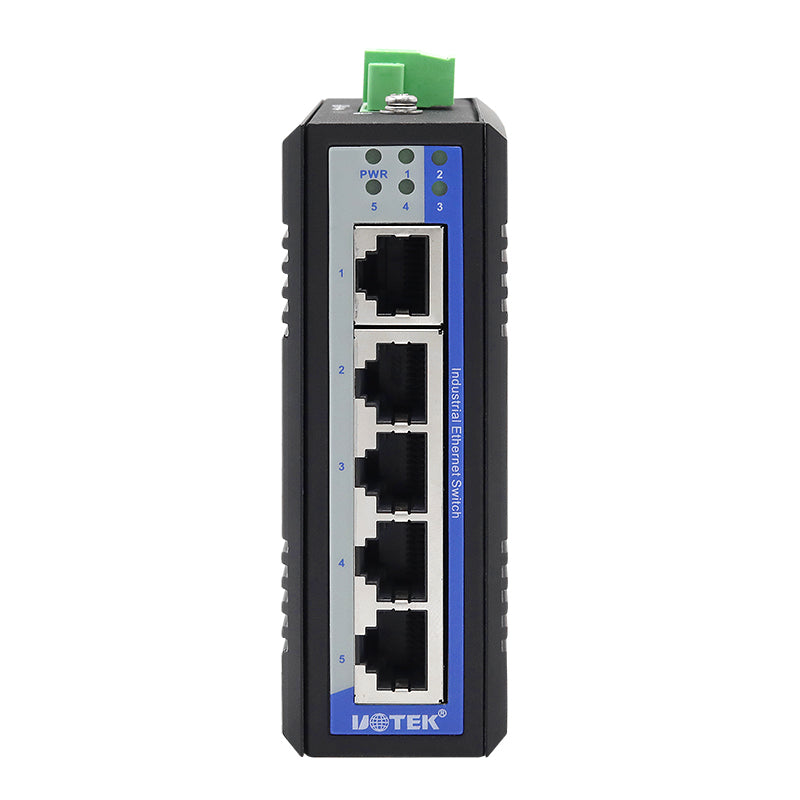

>>LED indicator light

PWR power indicator, RJ-45 indicator

>>Mechanical Characteristics

IP protection level: IP40

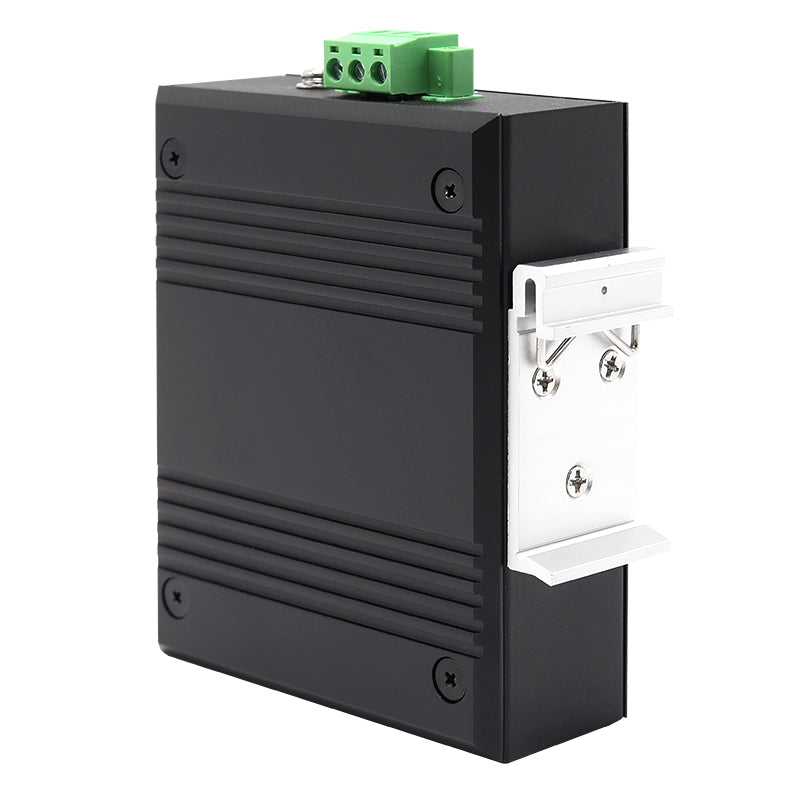

Installation: DIN-Rail Mounted

>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

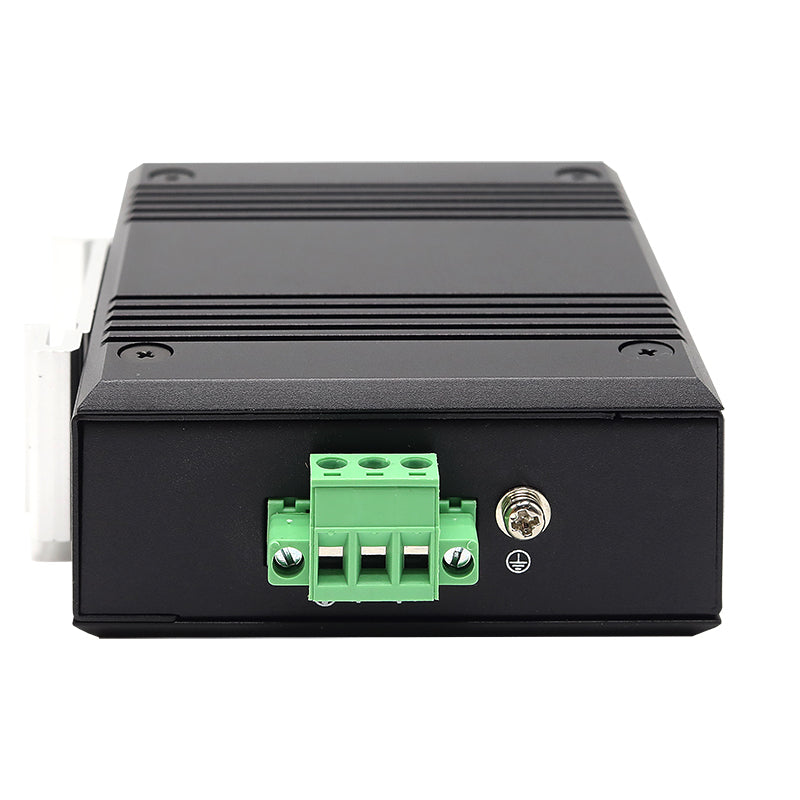

Interface terminal: 1 pluggable 3-pin terminal block

Overload protection: Support

Reverse connection protection: Support

>>Power consumption

120mA@24Vmax

>>Mechanical Dimension

Dimension (W x H x D): 100mm x 80mm x 35mm

Weight: 560g

Packaging dimension: 180mm x 140mm x 35mm

>>Operating Environment

Operating temperature: -20 ~ 70°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)

>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA，EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
