UOTEK UT-6405GM-POE 5-port Gigabit Managed POE Unmanaged Ethernet Switch
>>Protocol Standards
Standards: IEEE 802.3af/at, IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab , IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x
Protocols: ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/ RSTP/ MSTP, LLDP, IGMP, SNMPv1/v2c/v3. DHCP Server, NTP, RMON, Syslog
Flow control: IEEE802.3x flow control, backpressure flow control
>>Interfaces
Fiber optic interface: 1000Base-X (SC/FC/ST/SFP slots)
RJ45 interface: 10/100/1000Base-T, support 4 POE output
POE pins: V+ ,V+, V-,V- corresponding to the array of pins 1,2,3,6 (default)
>>Transmission Distance
Cat.5e: 100m
Fiber Optic Module
Single-mode: 1310nm 20/40/60Km
1550nm 80/100/120Km
Multi-mode: 1310nm 2Km
>>Switching Performance
Forwarding rate: 1488095pps
Transmission mode: store and forward
MAC address size: 1K
Cache size: 1Mb
Backplane bandwidth: 12G
Max. frame length:10KB
>>LED indicator light

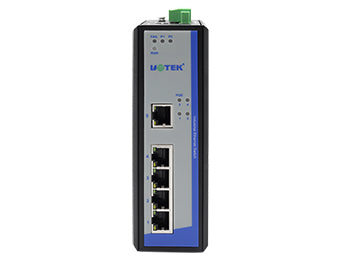

power indicator, optical port indicator, RJ-45 indicator Alarm indicator, operation indicator, POE indicator
>>Power Requirement

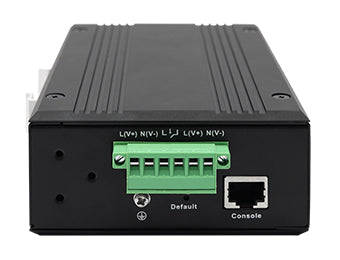

Voltage input: 48VDC(46-57V),redundant input
Interface terminal: 1 pluggable 6 pin terminal block
>>Consumption
Max. consumption power for each port about 30 W, total power consumption no more than 80W.
>>Mechanical Characteristics
IP protection level: IP40

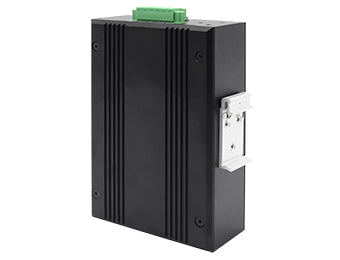

Installation: DIN-Rail /Wall Mounted
>>Operating Environment
Operating temperature: -40~75°C
Storage temperature: -40~85°C
Relative humidity: 0~95% (non-condensing)
>>Mechanical Dimension
Dimension (W x H x D): 150mm x 47.6mm x 100mm
Package dimension: 250mm x 205mm x 55mm
Weight: 830g
>>Industrial Standards
EMI :
FCC Part 15,CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
