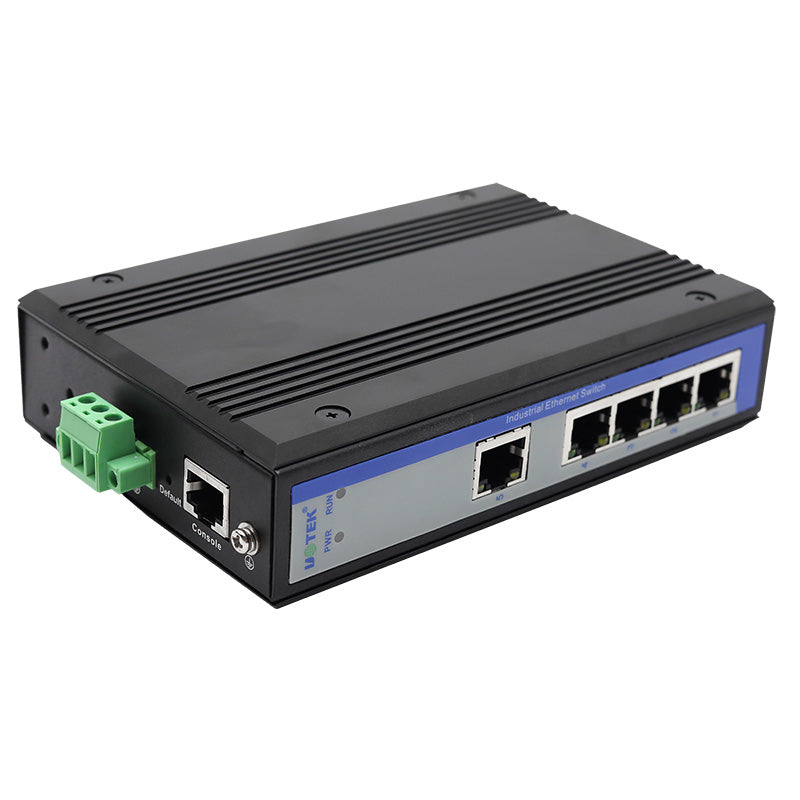

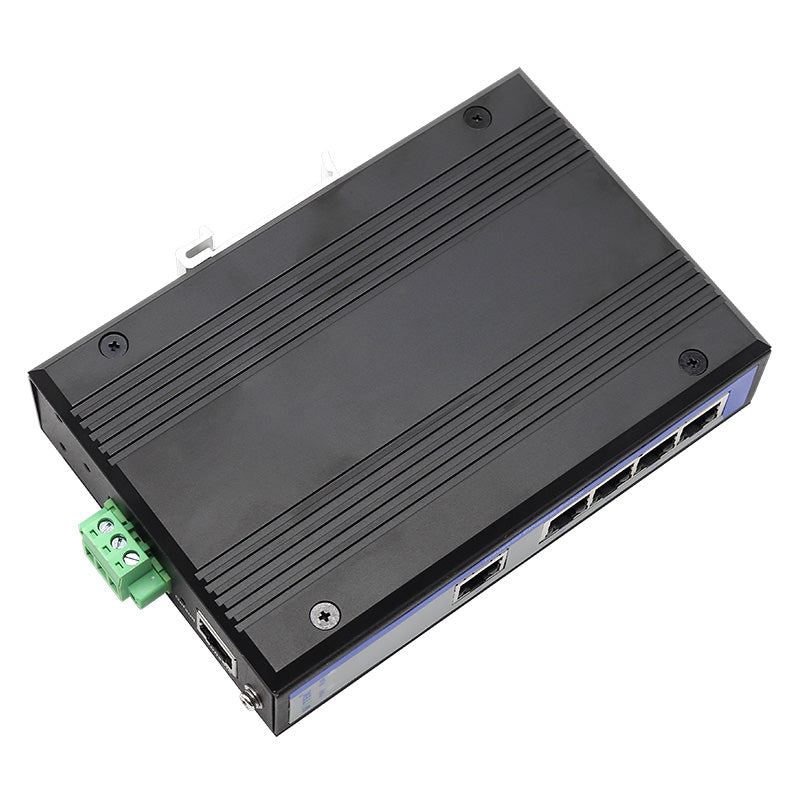

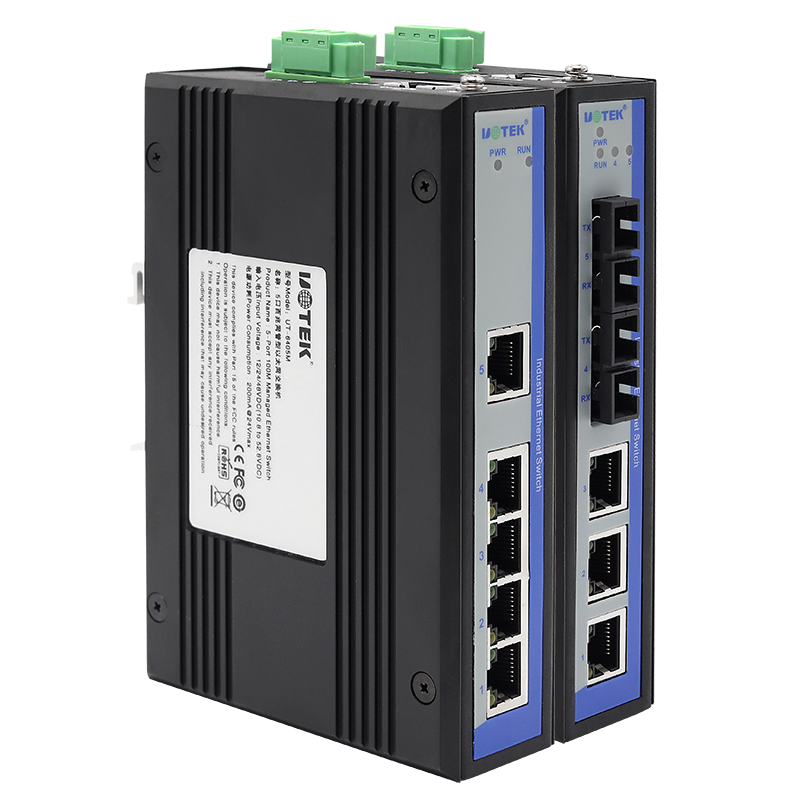

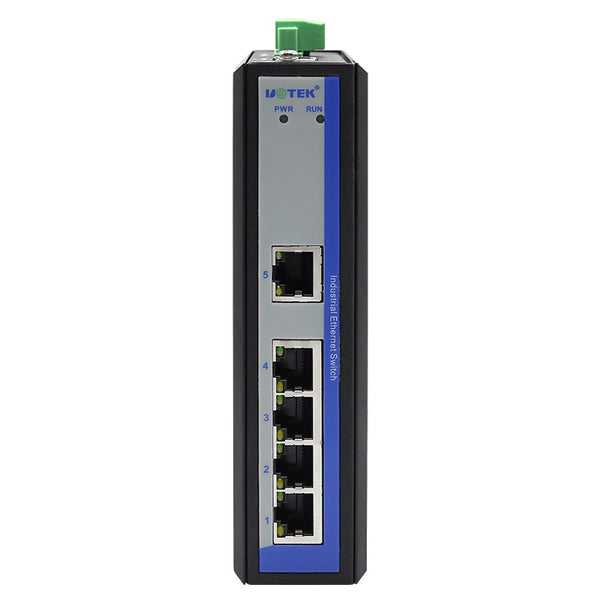

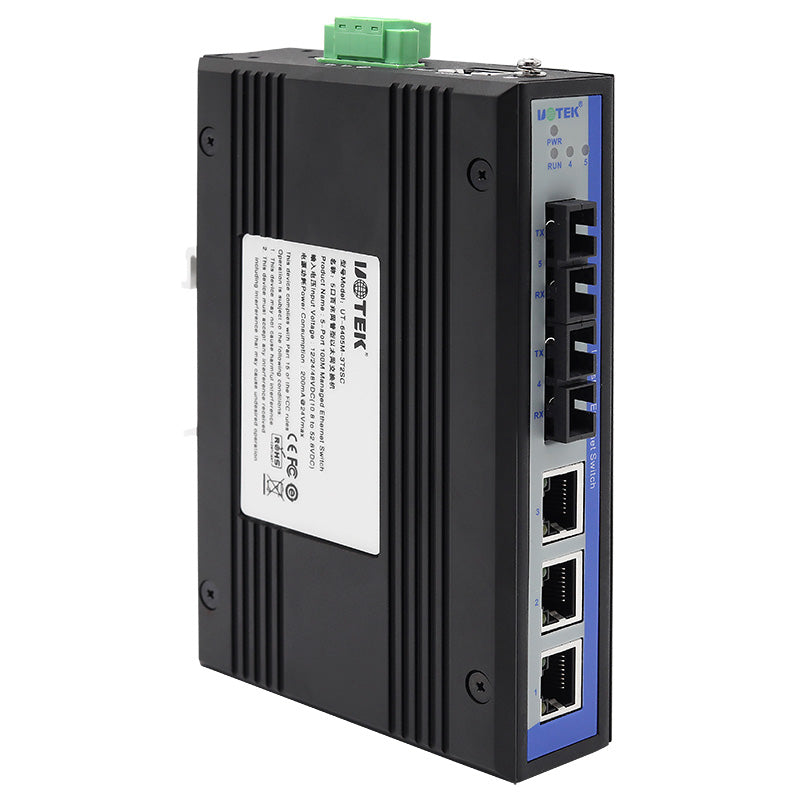

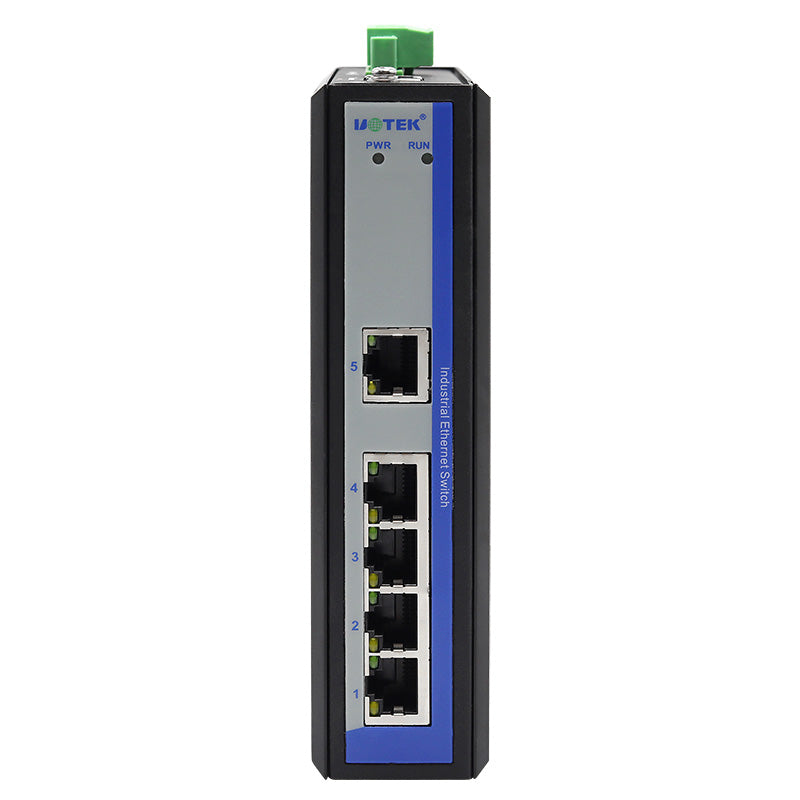

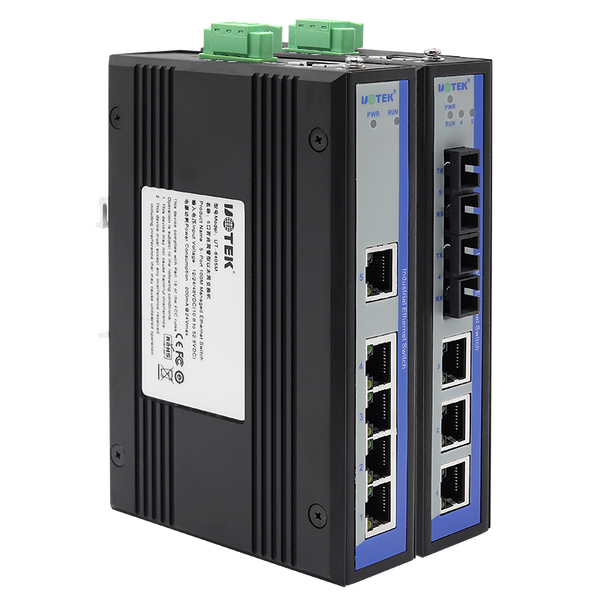

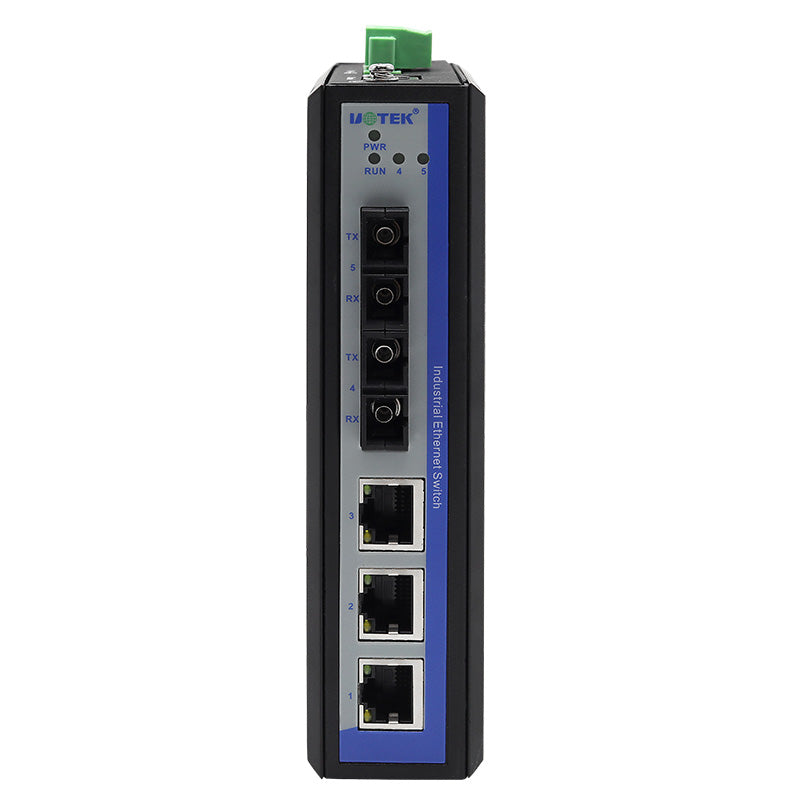

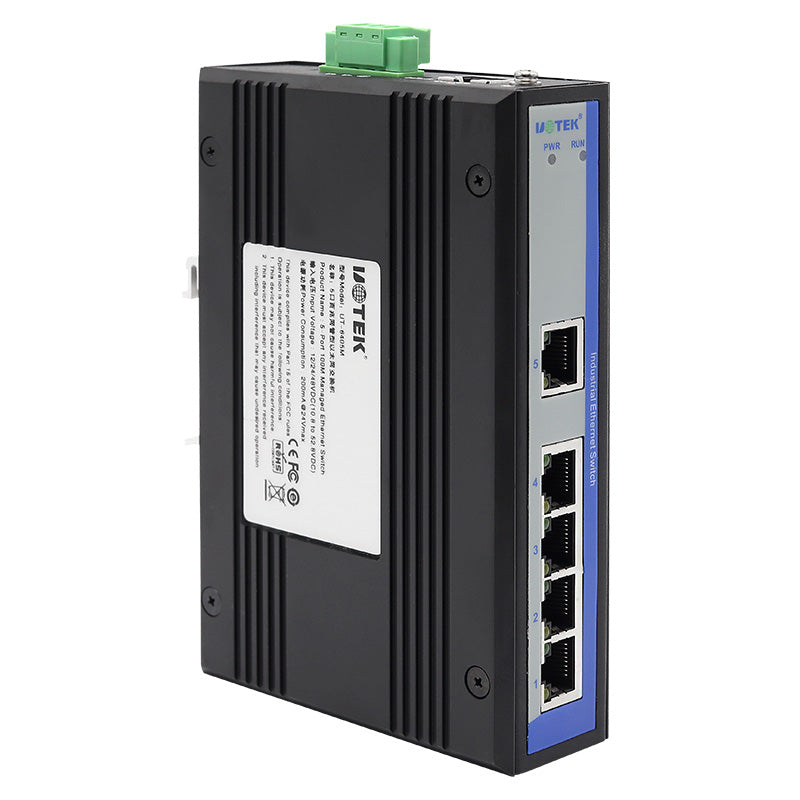

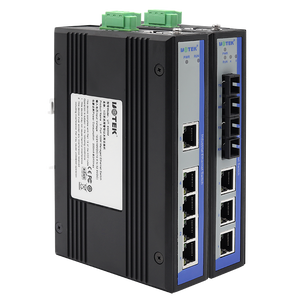

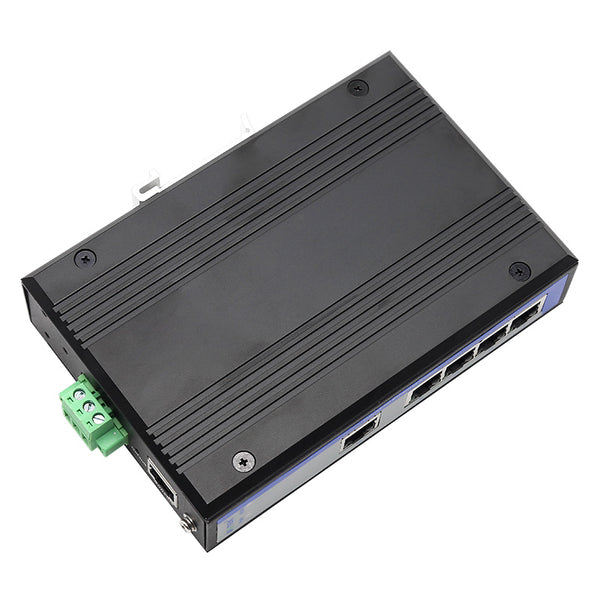

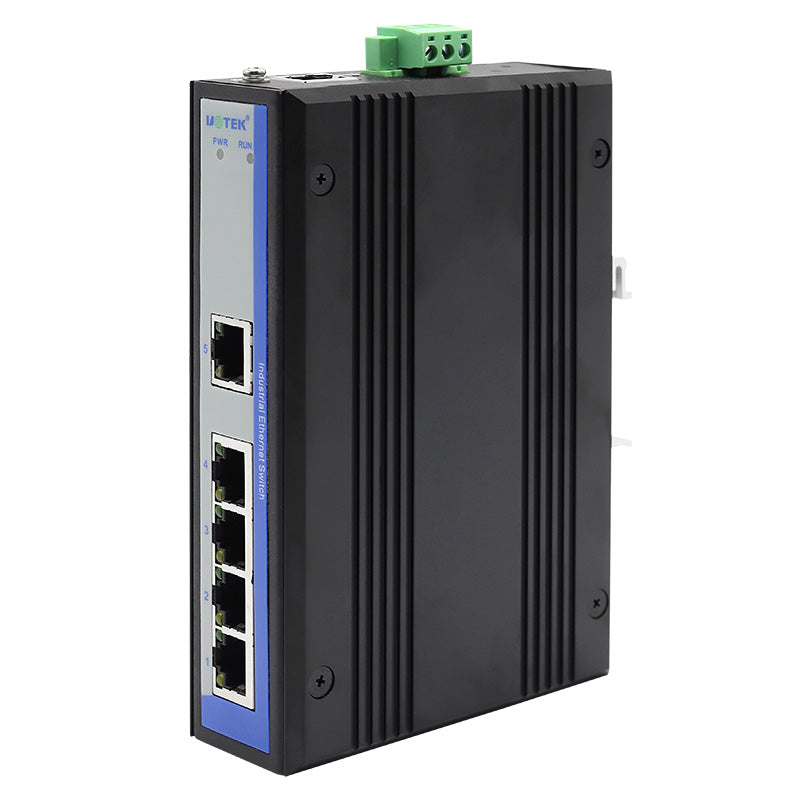

UOTEK UT-6405M 5-Port 100M Simple Managed Ethernet Switch

>>Protocol Standards

Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1s, IEEE802.1D, IEEE802.1W, IEEE802.1x

Protocols: ICMP, TCP, HTTP, Telnet, UT-Ring, STP/RSTP. SNMP, LLDP, IGMP-Snooping, GMRP

Flow control: IEEE802.3x flow control, backpressure flow control

>>Interfaces

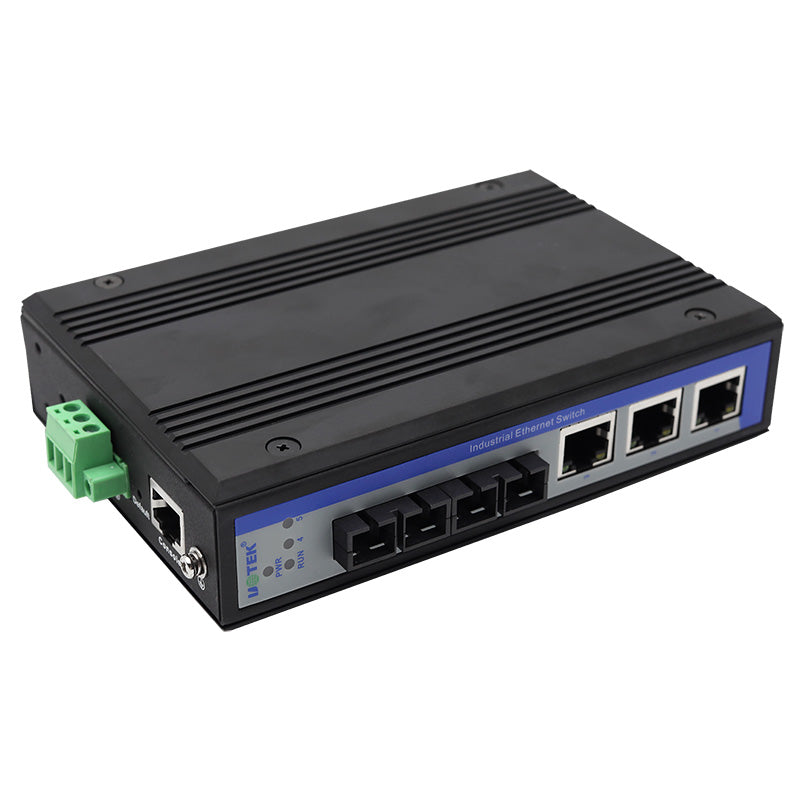

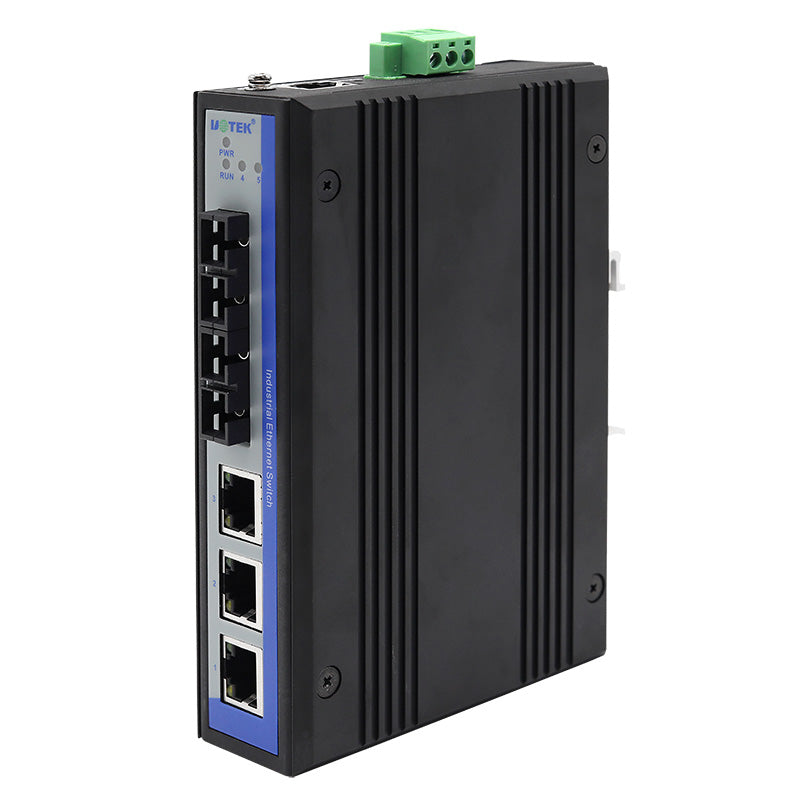

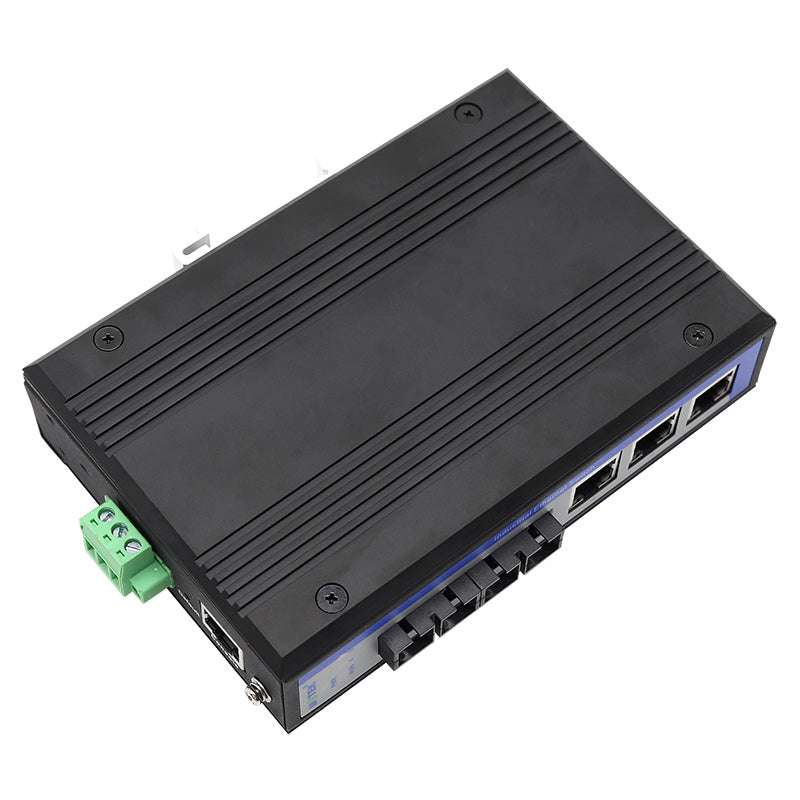

Fiber optic interface: 100Base-FX (SC/FC/ST)

                  1000Base-X (SC/FC/ST)

RJ45 interface: 10/100Base-T(X), MDI/MDI-X adaptive

>>LED indicator light

Power indicator, network indicator, alarm indicator, operation indicator

>>Transmission distance

Cat.5e: 100m

Fiber optic patch cord

Single-mode: 1310nm 20/40/60Km

           1550nm 80/100/120Km

Multimode: 1310nm 2Km

>>Switching Performance

Forwarding Rate: 148810pps

Transmission mode: Store and Forward

MAC address size: 1K

Cache size: 0.5Mb

Backplane bandwidth: 1.2G

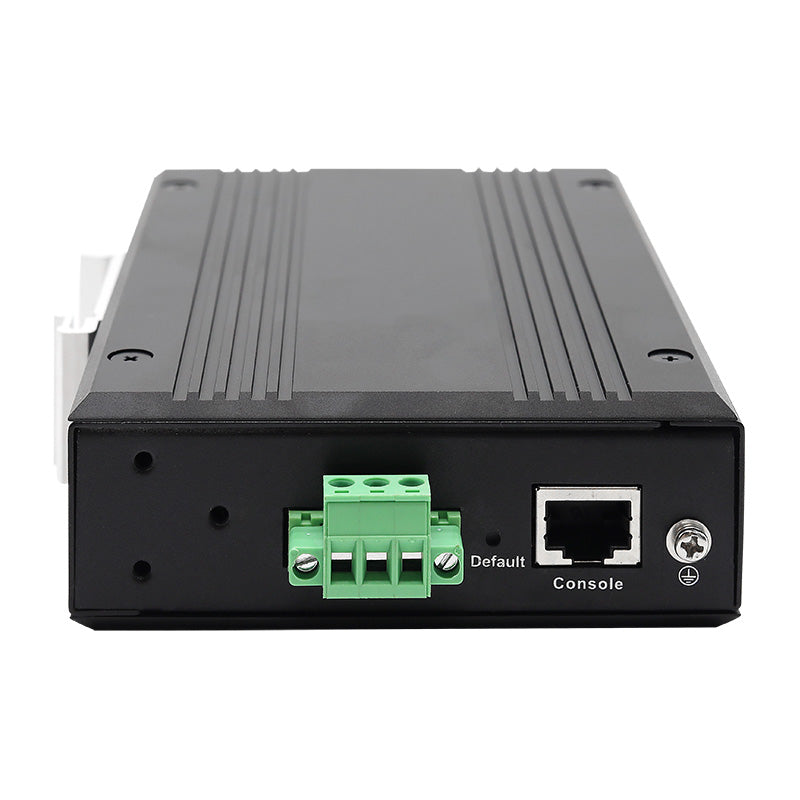

>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Power consumption：150mA@24Vmax

>>Mechanical Characteristics

IP protection level: IP40

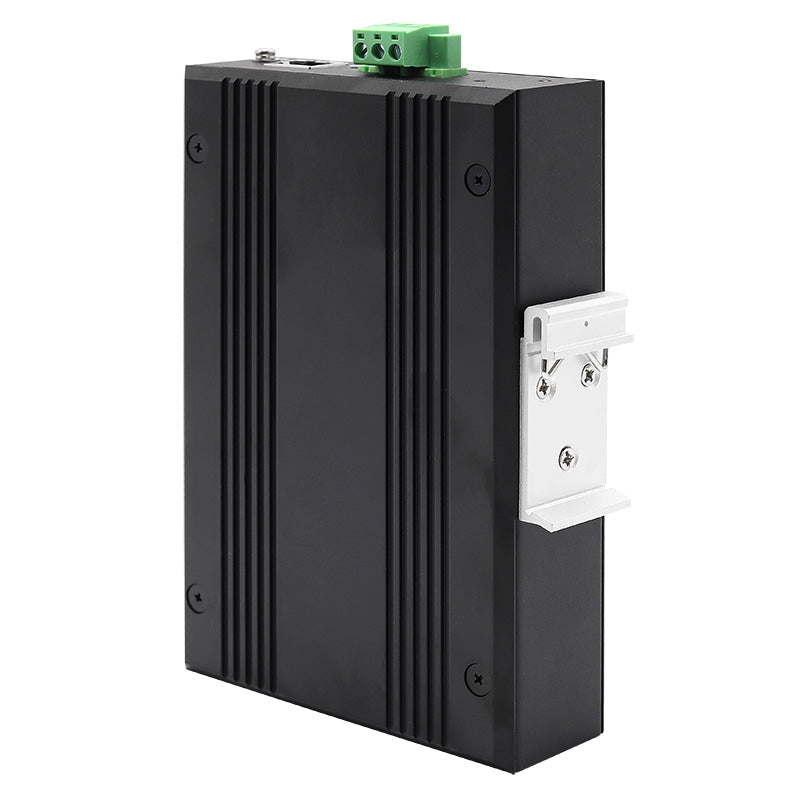

Installation: DIN-Rail Mounted

>>Operating Environment

Operating temperature: -40 ~ 85°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0 ~ 95% (non condensing)

>>Mechanical Dimension

Dimension (W x D x H): 150mm x 100mm x 37mm

Weight: 680SSg

Packaging dimension: 250mm x 205mm x 55mm

>>Industrial Standards

EMI：FCC Part 15，CISPR (EN55022) class A

EMS：

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
