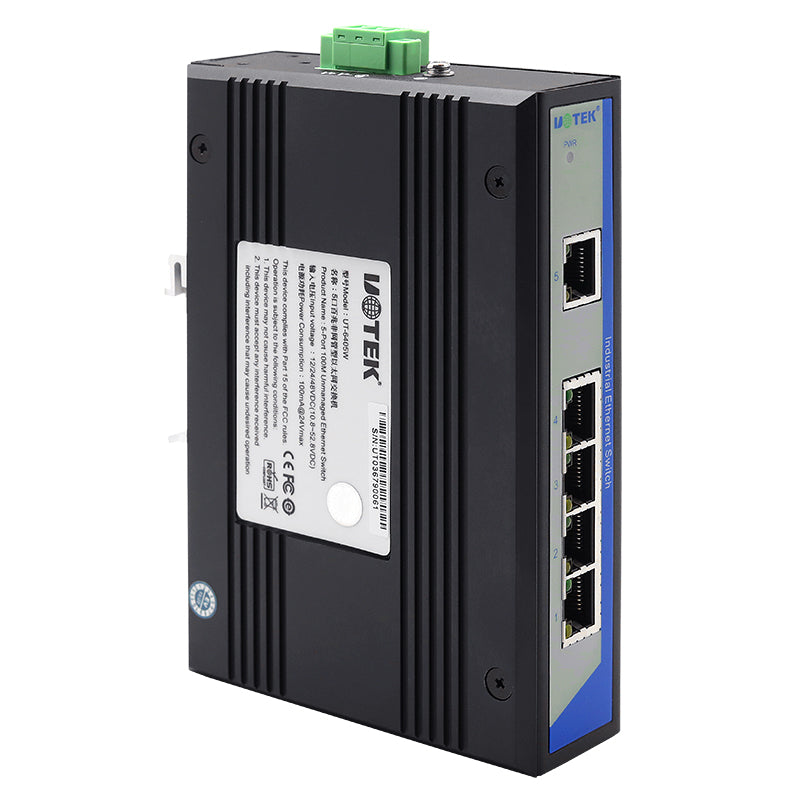

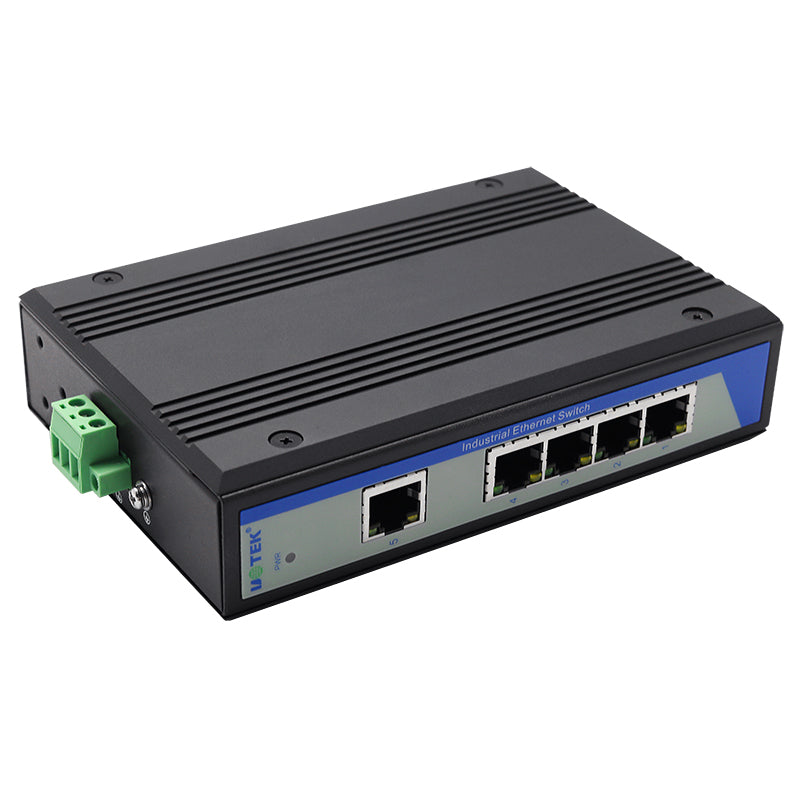

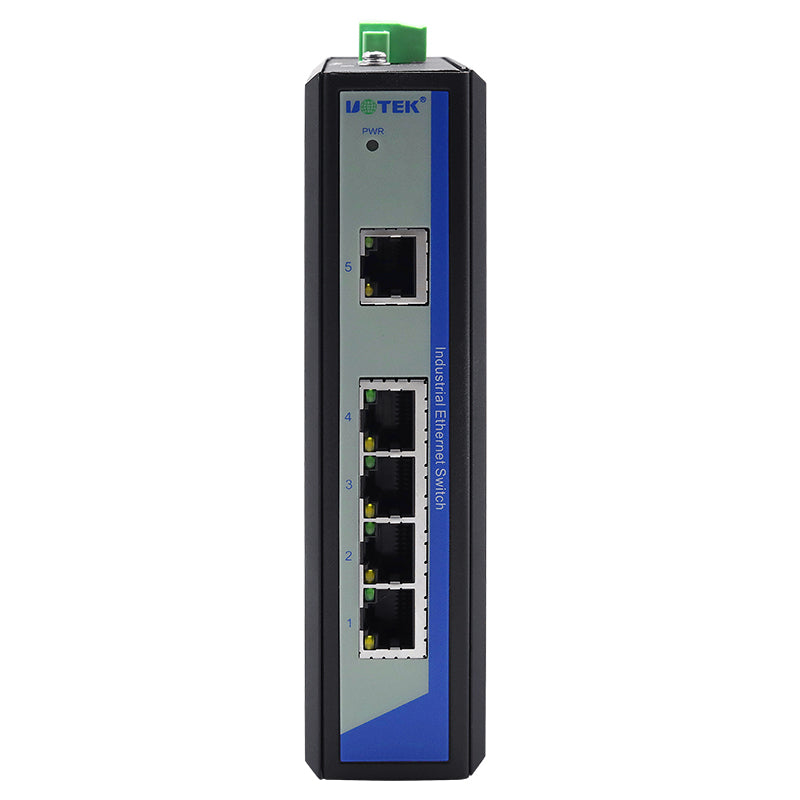

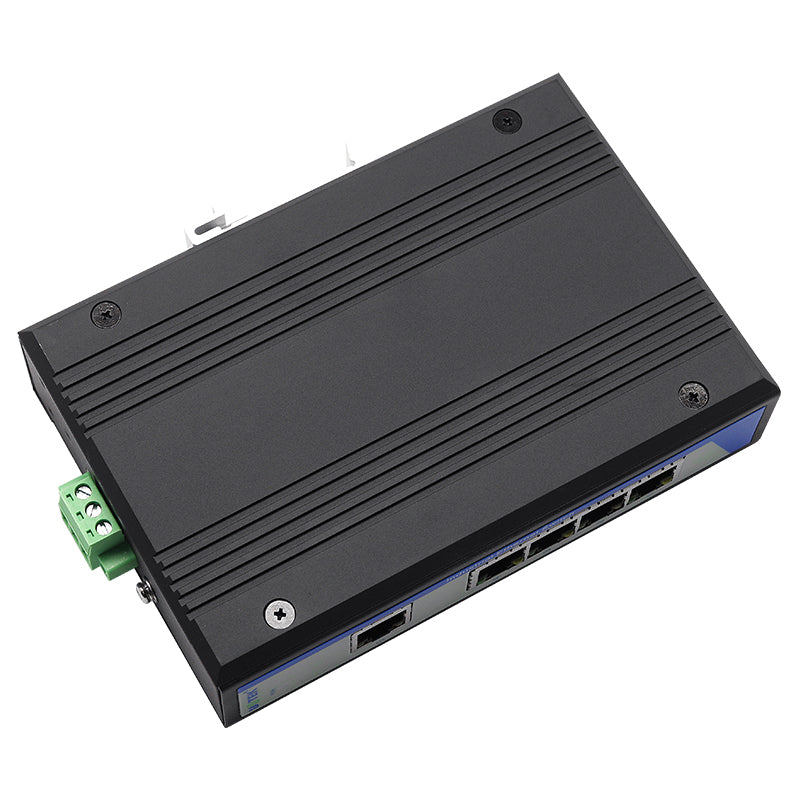

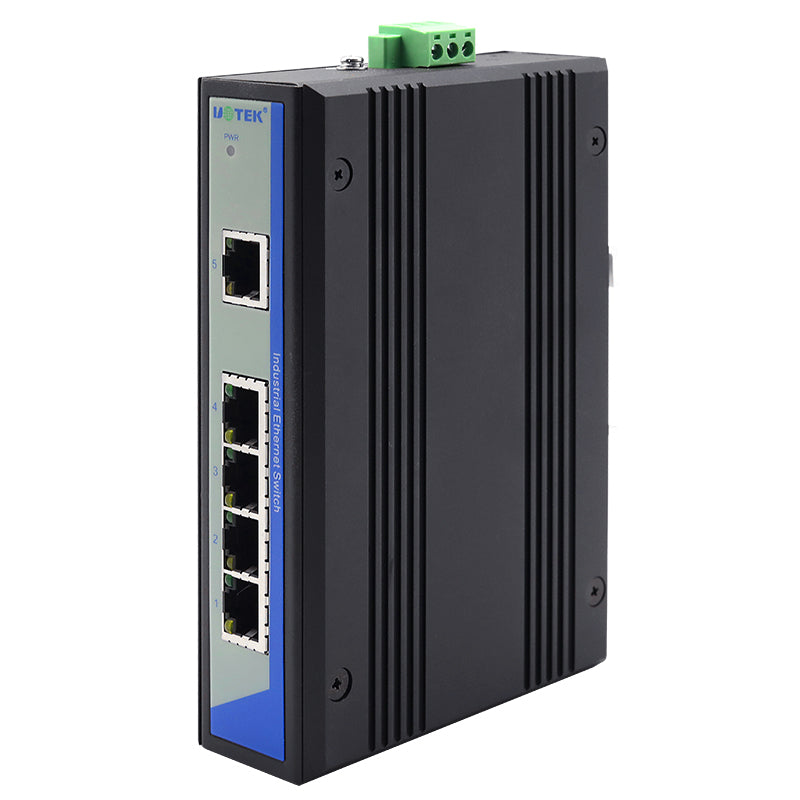

UOTEK UT-6405W 10/100M 5-Port Unmanaged Industrial Ethernet Switch

$69.91 ~~$82.00~~

Tax included. Shipping calculated at checkout.

>>Standards
IEEE 802.3 10BaseT

IEEE 802.3u 100BaseT(X)和100Base FX

>>Ports
RJ45 port：5 10/100BaseT（X）port, auto detection, full/half duplex, auto MDI/MDI-X

LED indicator: PWR, RJ-45

>>Power requirement
Input voltage: 12-48 VDC
Power consumption: Max. 2.2 Watts

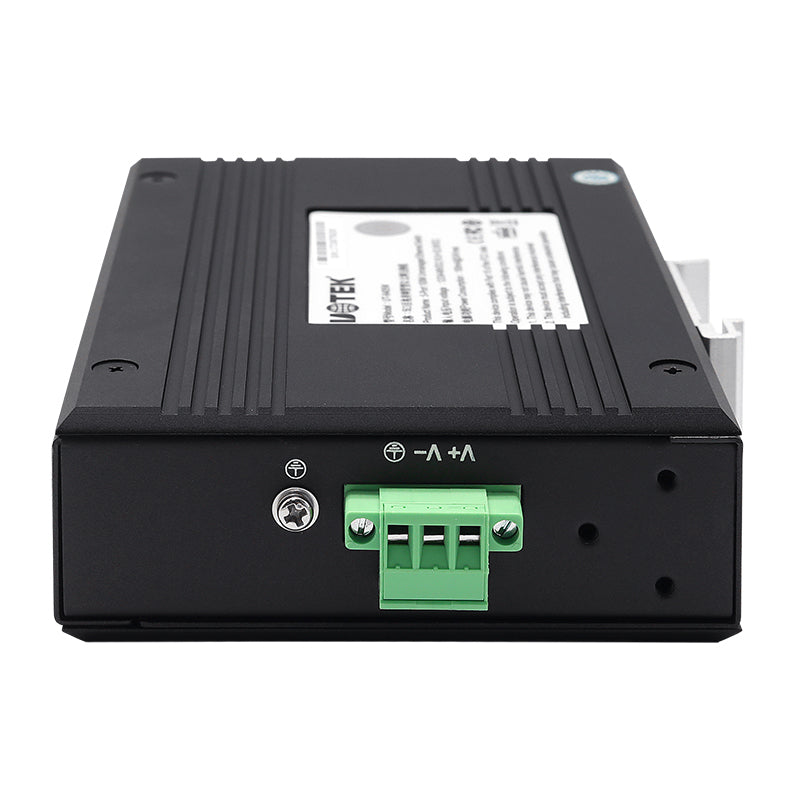

Terminal block: 1 pluggable 3-pin terminal block
Overload protection: Support

Reverse polarity protection: Support

>>Mechanical Characteristics
IP rating: IP30

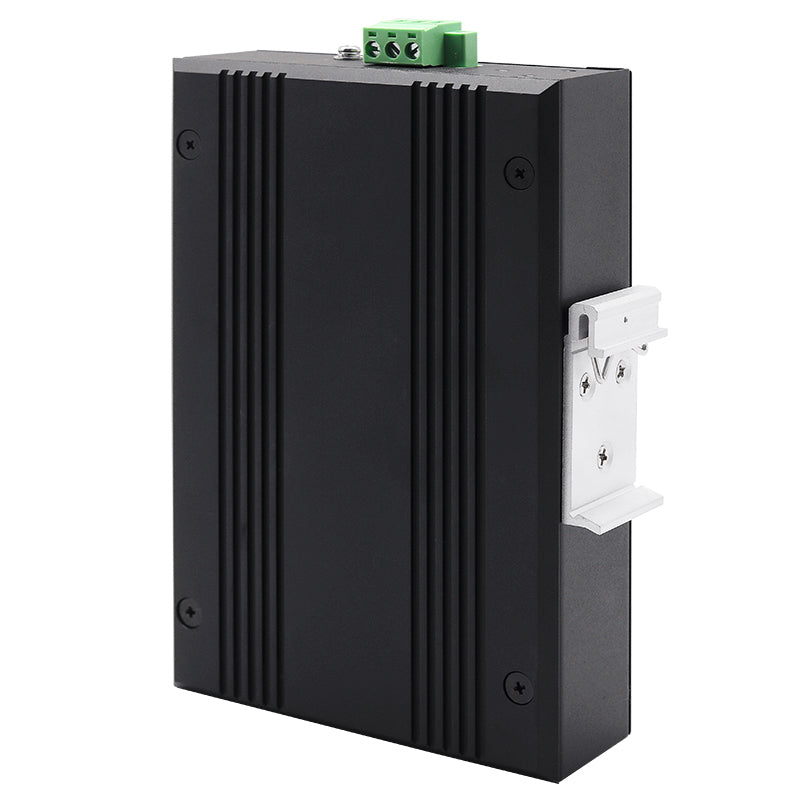

Installation: Din-Rail/wall-mounted

Dimension(W x H x D): 150mm×37mm×100mm

>>Environment
Operating temperature: -40℃～85℃
Storage temperature: -40℃～85℃
Relative humidity: 5～95% (non-condensing)

>>Industrial standards
EMI: FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD), level 3
IEC(EN)61000-4-3(RS), level 3
IEC(EN)61000-4-4(EFT), level 3
IEC(EN)61000-4-5(Surge), level 3
IEC(EN)61000-4-6(CS), level 3
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
