UTEK Technology

UOTEK UT-6408-POE 10/100M 8-Port POE Ethernet Switch

$188.76 ~~$240.00~~

Tax included. Shipping calculated at checkout.

>>Standards
IEEE 802.3af/at(PoE)
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T(X) & 100Base-FX

>>Ports
RJ45 port：8x 10/100Base-T（X） Ethernet ports, auto detection, full/half-duplex, auto MDI/MDI-X, supports POE
POE pin: POE+：1，2； POE-：3，6

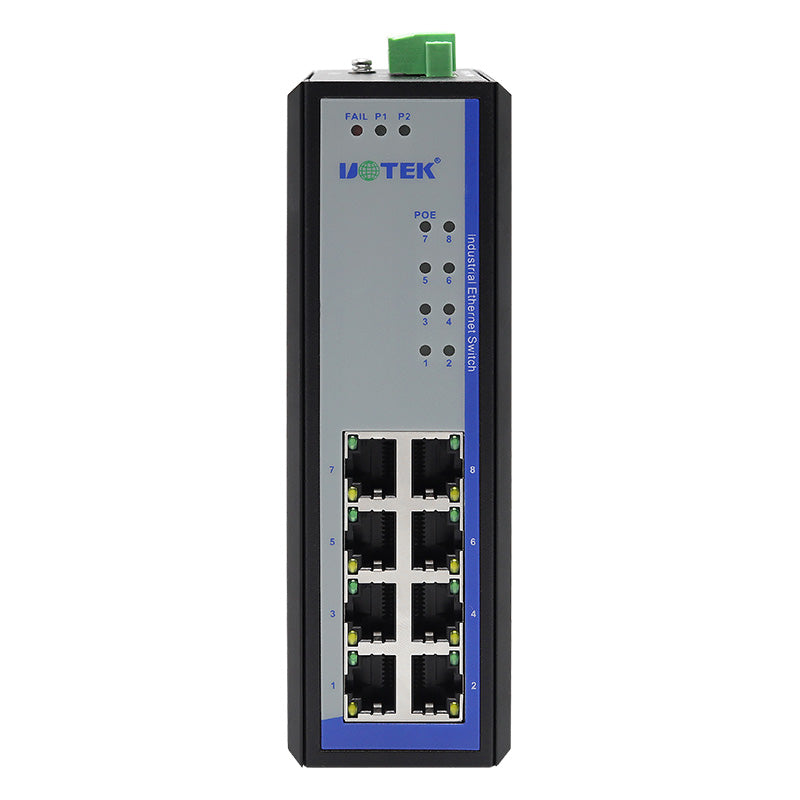

LED indication：PWR1, PWR2, FAIL, POE，RJ45 indicators

>>Power requirement
Voltage input: DC 46~57V，redundant dual power input

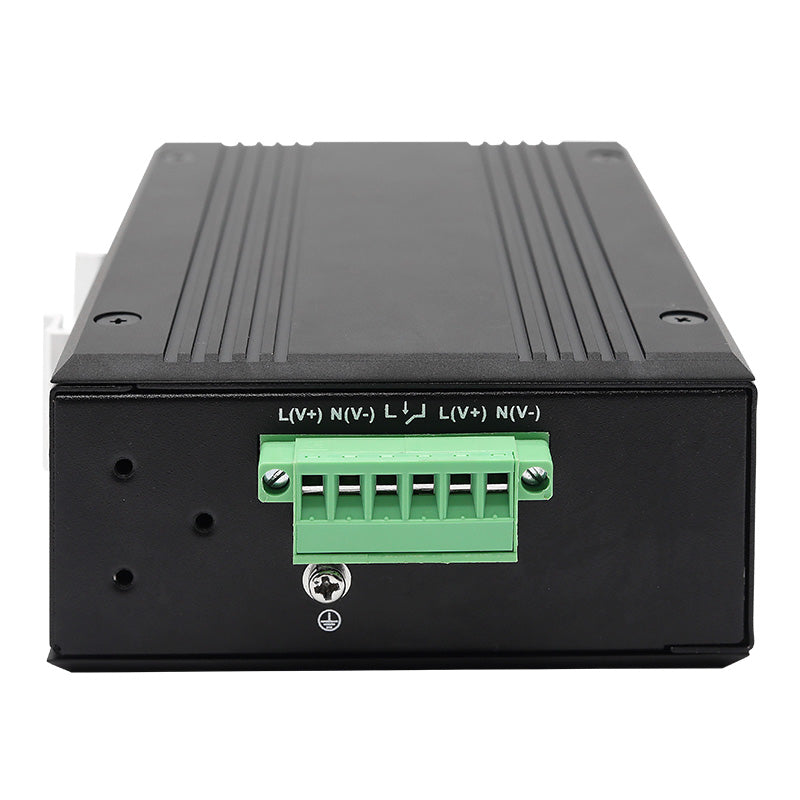

Terminal block: 1 pluggable 6-pin terminal block
Overload protection: Support
Reverse polarity protection: Support

>>Mechanical characteristics
IP rating: IP30

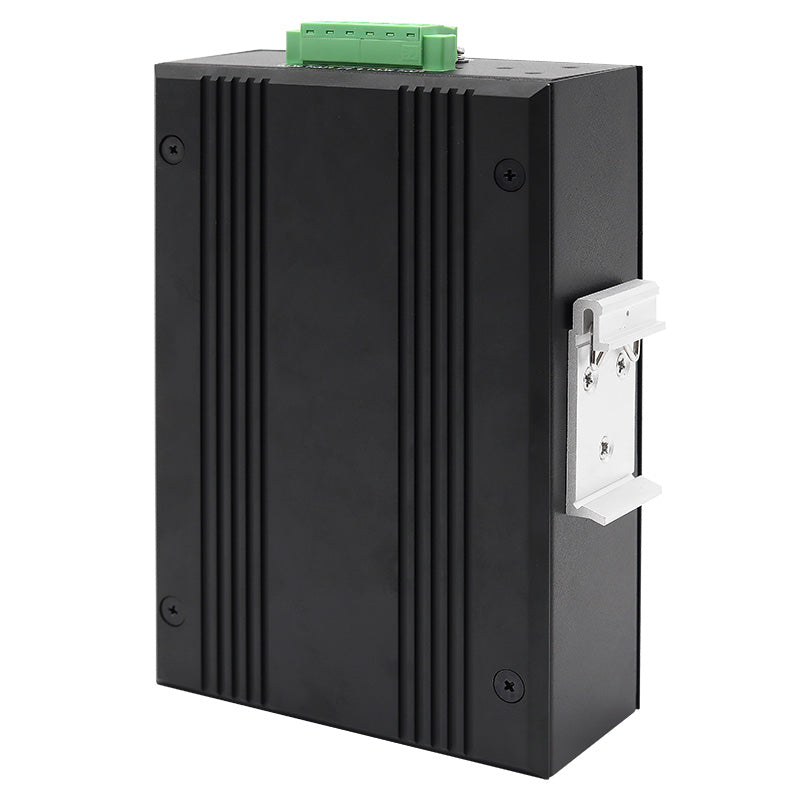

Installation: DIN-Rail/wall-mounted
Size (W x H x D)：150mm×47.6mm×100mm

>>Environment
Operating temperature: -40℃～85℃
Storage temperature: -40℃～85℃
Relative humidity: 5～95% (non-condensing)

>>Industrial standards
EMI: FCC Part 15 Subpart B classA，EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD), level 4
IEC(EN)61000-4-3(RS), level 3
IEC(EN)61000-4-4(EFT), level 4
IEC(EN)61000-4-5(Surge), level 4
IEC(EN)61000-4-6(CS), level 3
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
