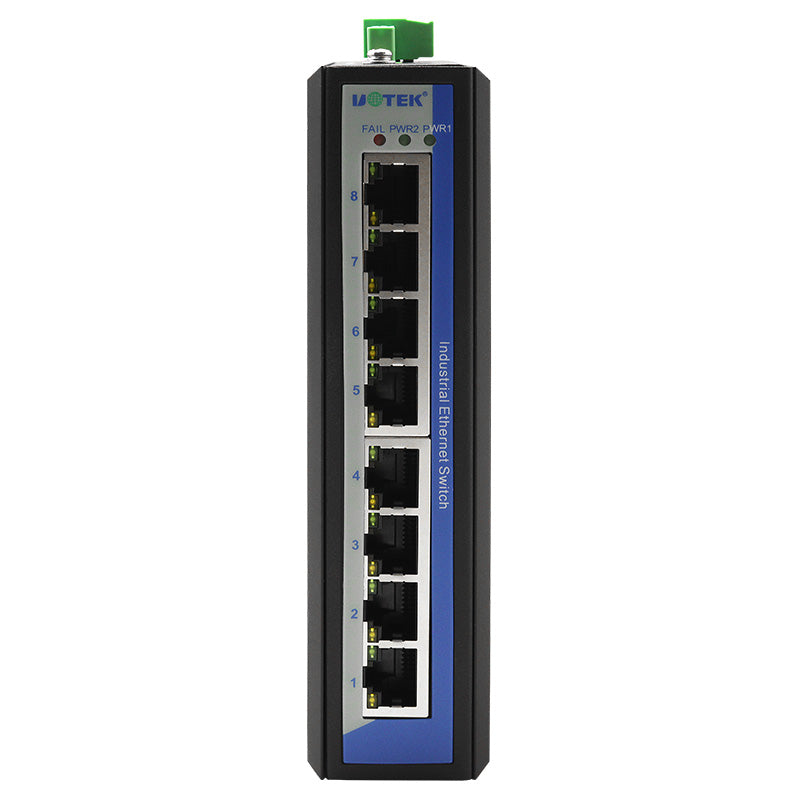

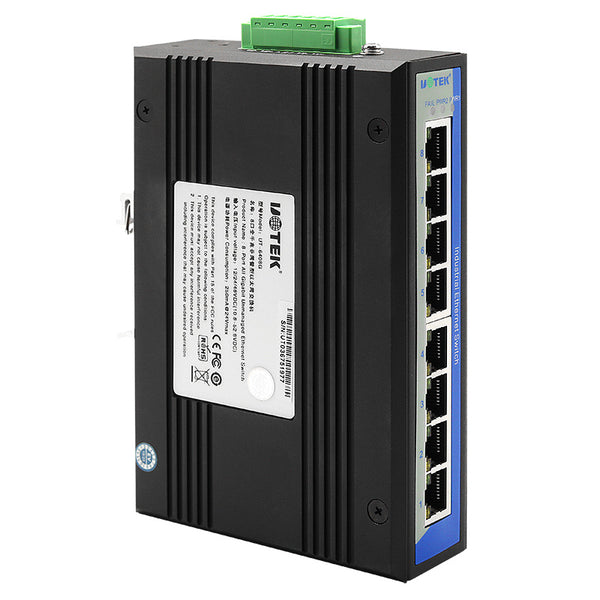

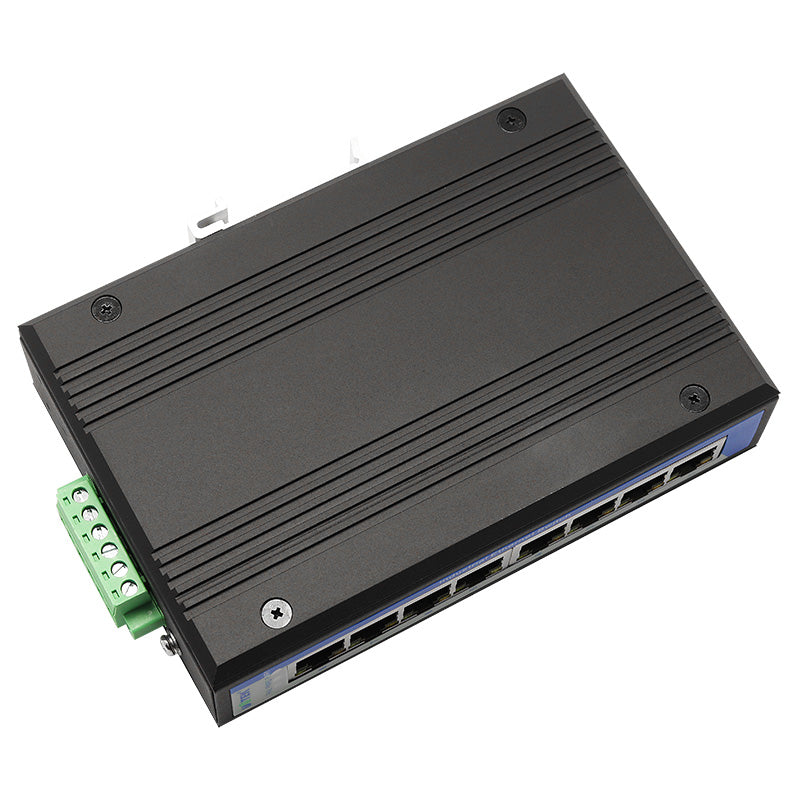

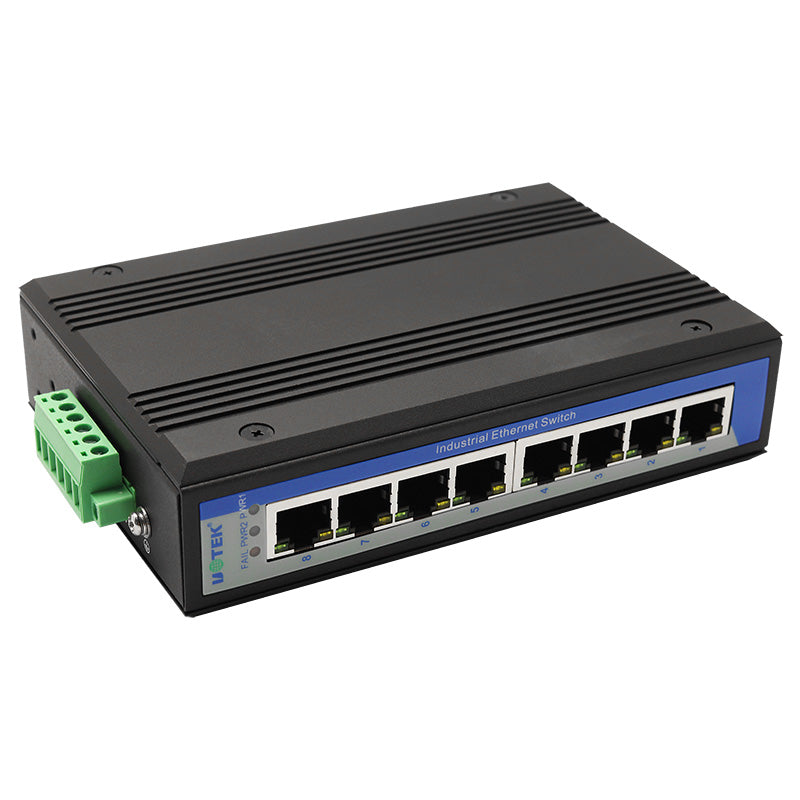

UOTEK UT-6408G Gigabit 8-Port unmanaged Ethernet Switch

>>Interfaces

Ethernet: 8*Gigabit RJ45, support 10/100/1000Base-T

LED indicator: power indicator, FAIL power failure light, RJ-45 indicator

Alarm contact: (UT-6408G) 1 relay output, normally open and normally closed

>>Switching Performance

Forwarding Rate: 1488095pps

Transmission mode: Store and Forward

MAC address size: 4K

Cache size: 1.5Mb

Backplane bandwidth: 18G

Max. frame length: 9720B

>>Mechanical Dimension

Dimension (W x D x H): 150mm x 100mm x 37mm

Weight: 0.9kg

Packaging dimension: 250mm x 205mm x 55mm

>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC),Redundant dual voltage input

Power consumption：250mA@24Vmax

Terminal block: 1 pluggable 6-pin terminal block

Overload protection: Support

Reversal protection: Support

>>Operating Environment

Operating temperature: -40 ~ 85°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0 ~ 95%

>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail / Wall Mounted

>>Industrial Standards

EMI:

FCC Part 15 Subpart B class A, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
