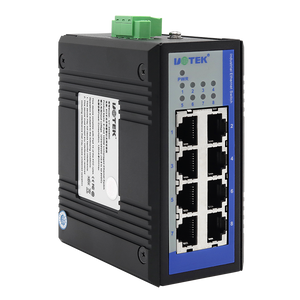

UOTEK UT-6408GC Gigabit 8-Port unmanaged Ethernet Switch

Regular price $81.99 Sale price $111.50 Unit price per
Tax included. Shipping calculated at checkout.

>>Protocol Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3ab 1000Base-T, IEEE 802.3x



>>Interfaces

RJ45 interface: 8* 10/100/1000Base-X, auto-detection, full/half duplex, auto MDI/MDI-X



>>Switching Performance

Forwarding rate: 1488095pps

Transmission mode: store and forward

MAC address size: 4K

Cache size: 1Mb

Backplane bandwidth: 16G

Max. frame length: 16KB



>>LED indicator light

PWR power light, 1~8 network indicator



>>Mechanical Characteristics

IP protection level: IP40

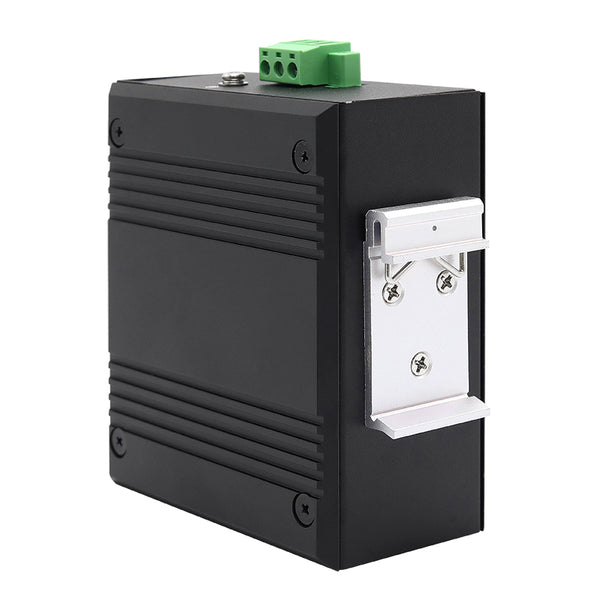

Installation: DIN-Rail Mounted



>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Interface terminal: 1 pluggable 3-pin terminal block

Overload protection: Support

Reverse connection protection: Support



>>Power consumption

130mA@24Vmax



>>Mechanical Dimension

Dimension (W x H x D): 100mm x 85mm x 47mm

Weight: 600g

Packaging dimension: 190mm x 182mm x 65mm



>>Operating Environment

Operating temperature: -20 ~ 70°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)



>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA,EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
