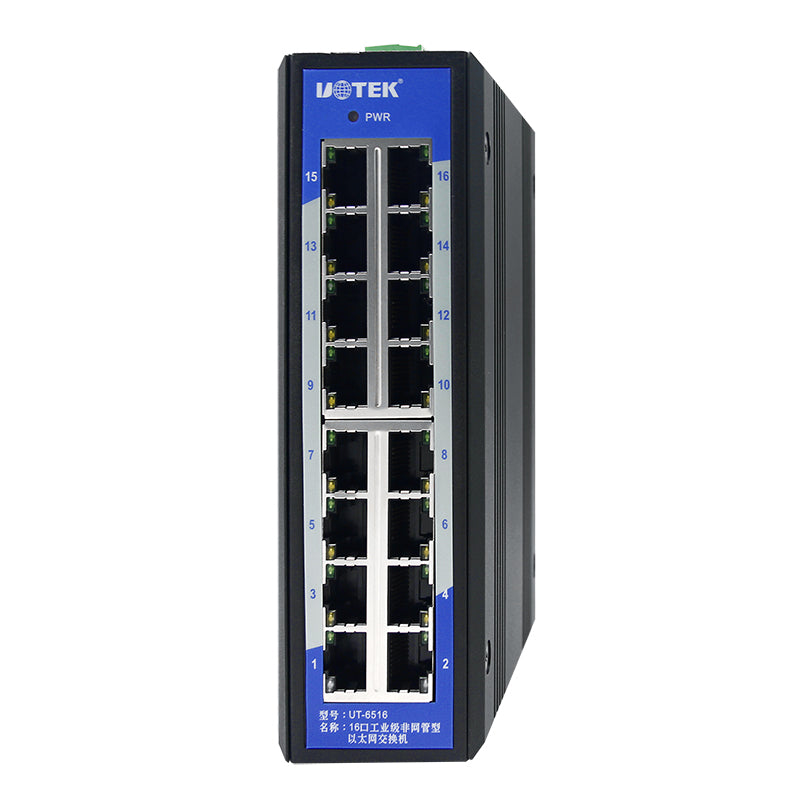

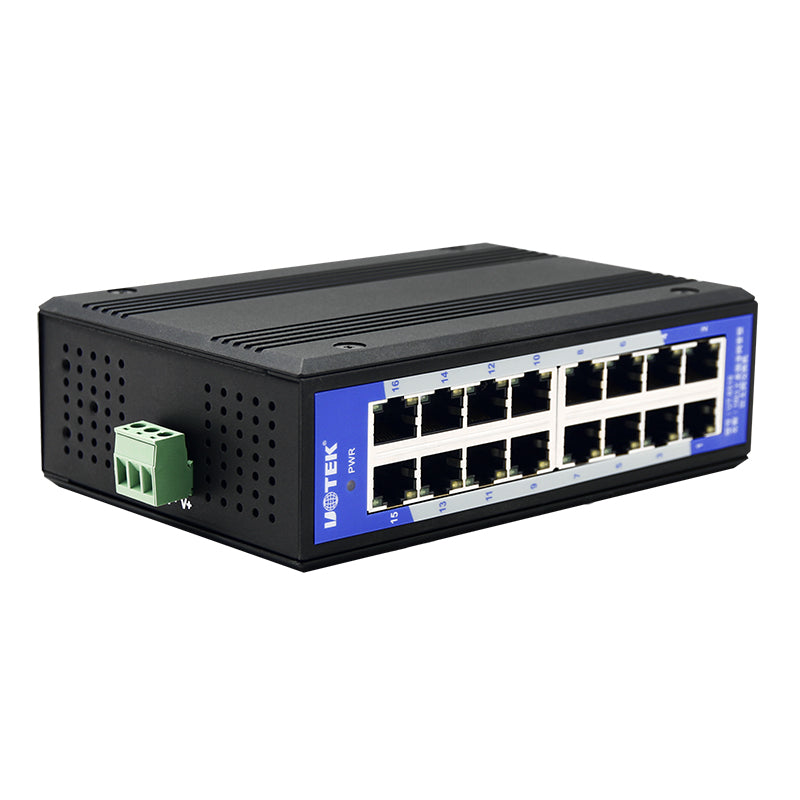

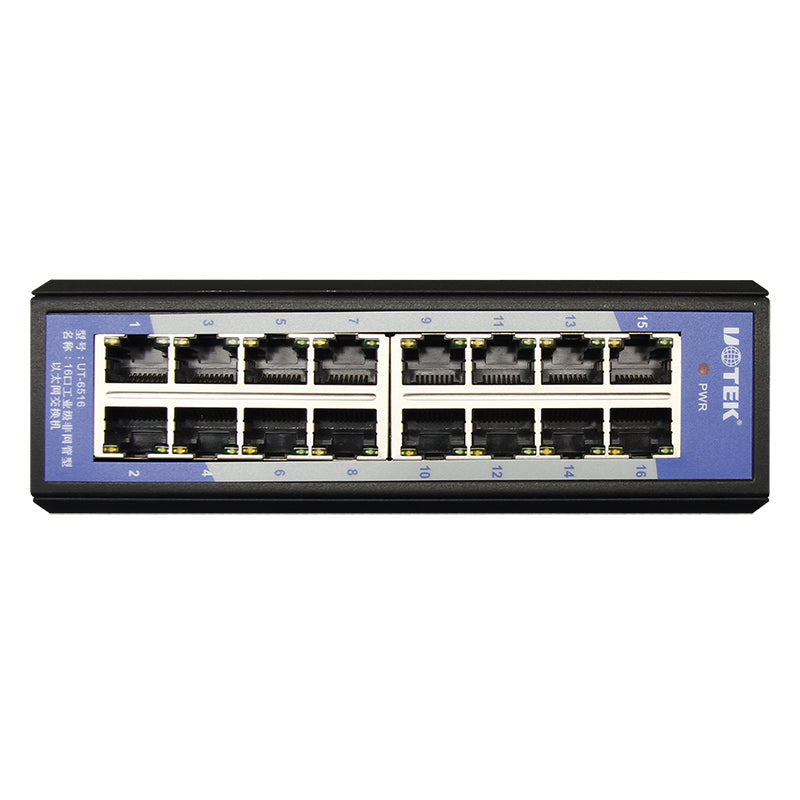

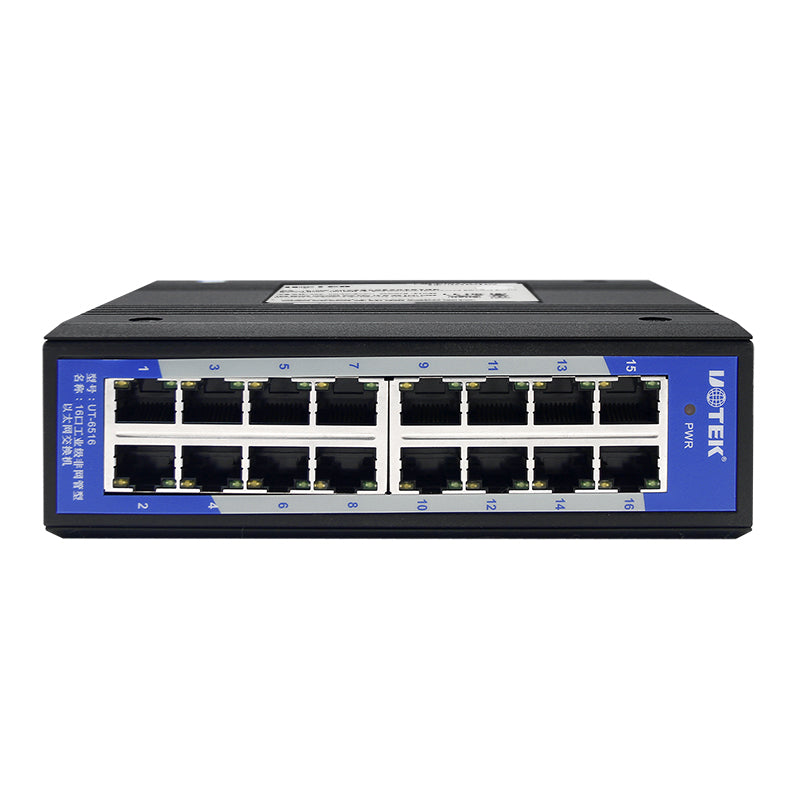

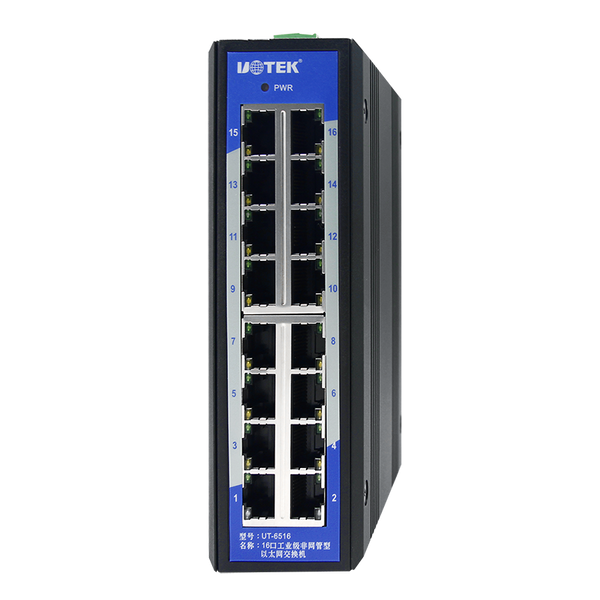

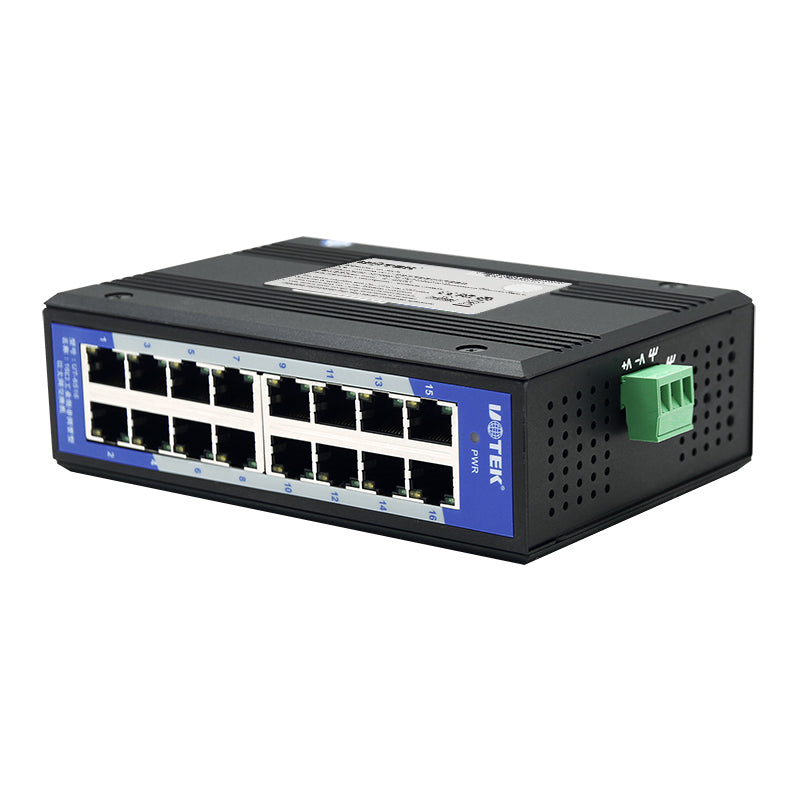

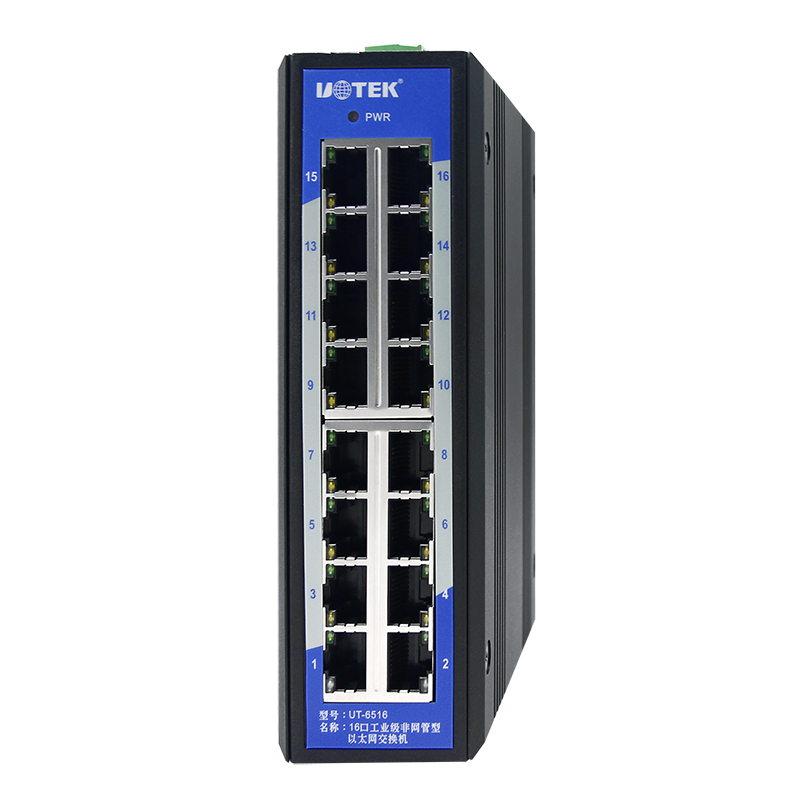

UOTEK UT-6516 10/100M 16-Port Unmanaged Industrial Switch

$84.50 ~~$124.00~~

Tax included. Shipping calculated at checkout.

>>Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T(X)&100Base-FX

>>Ports
RJ45 port：16x10/100Base-T（X）port, auto detection, full/half-duplex, auto MDI/MDI-X

LED indicators: PWR, 1～16 RJ-45 port indicator

>>Power Requirement
Voltage input:

- DC9-48V, reverse polarity protection

- AC9-38V

Power consumption: Max. 2.2 Watts
Terminal block: 1 pluggable 3-pin terminal block
Overload protection: Yes

Reverse polarity protection: Yes

>>Mechanical Characteristics
Case: steel
Installation: DIN-Rail/wall-mounted

Dimension(W x H x D): 150mm×47.6mm×100mm

>>Environment
Operating temperature: -10℃～60℃
Storage temperature: -40℃～85℃

Relative humidity: 5～95% (non-condensing)

>>Industrial standards
EMI: CE, FCC; EMI：FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
