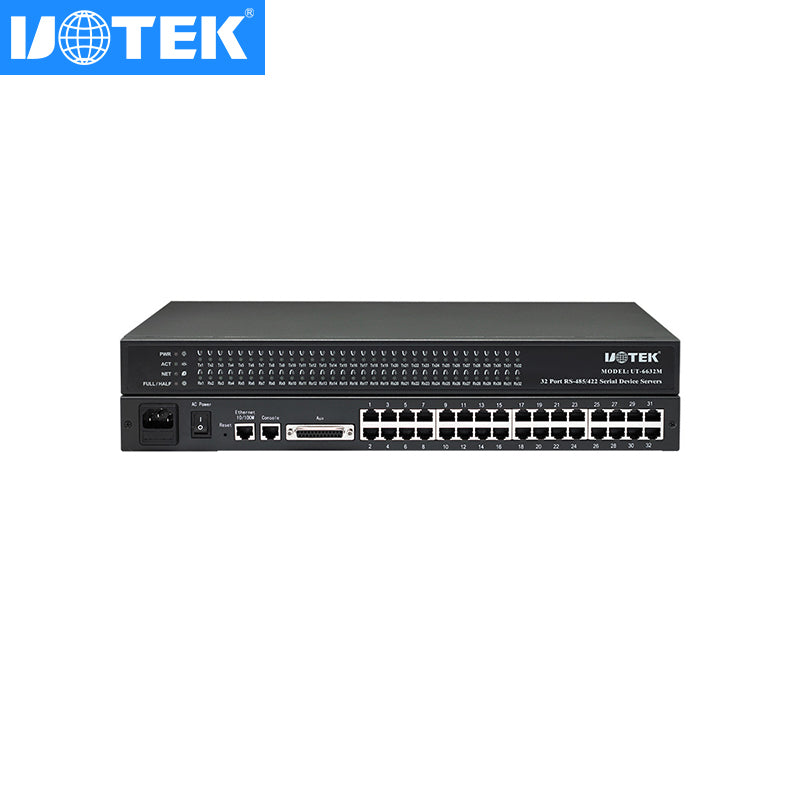

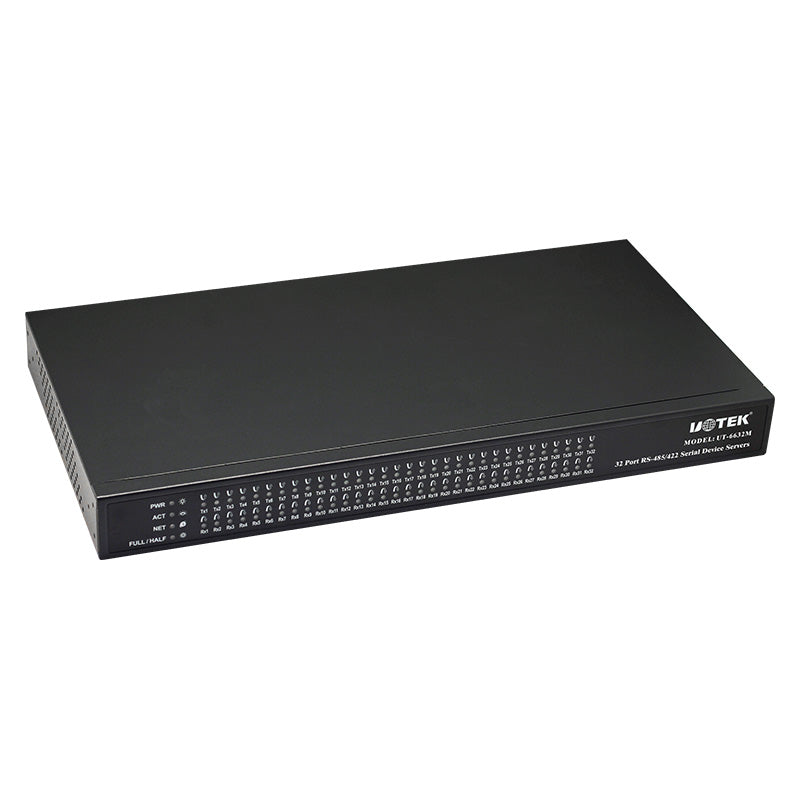

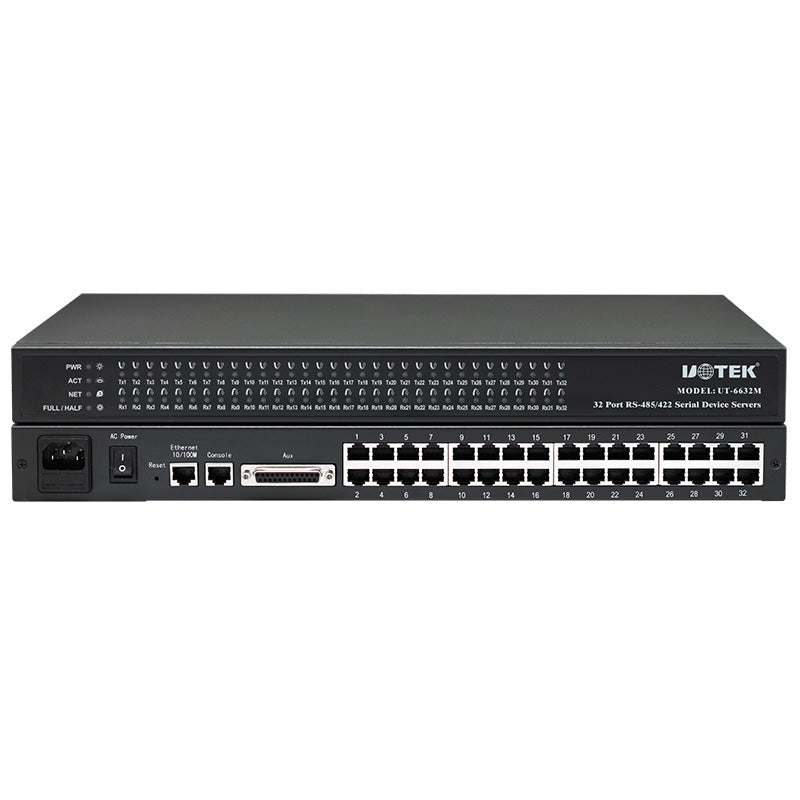

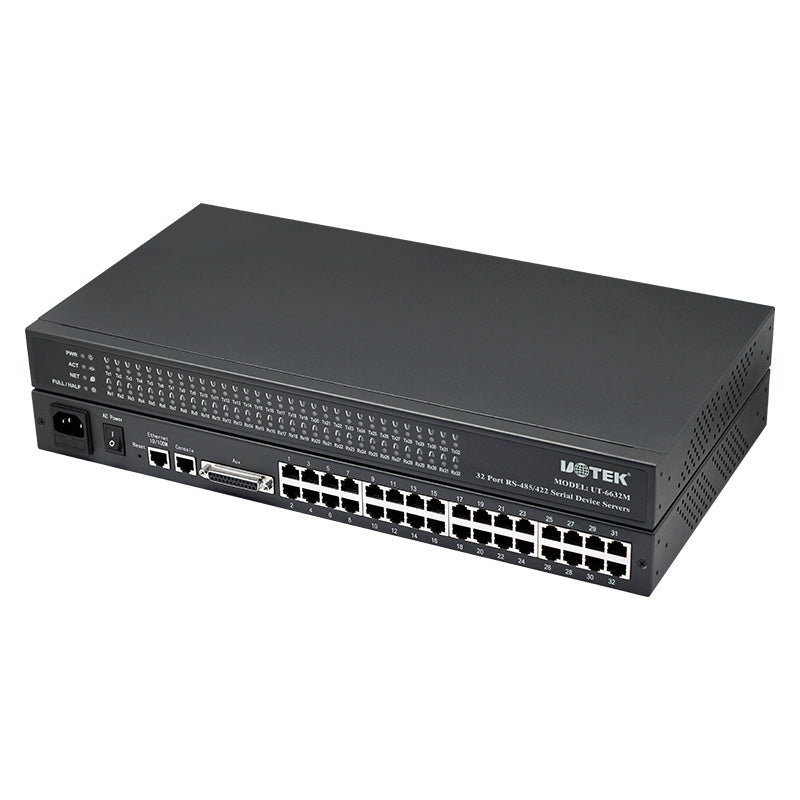

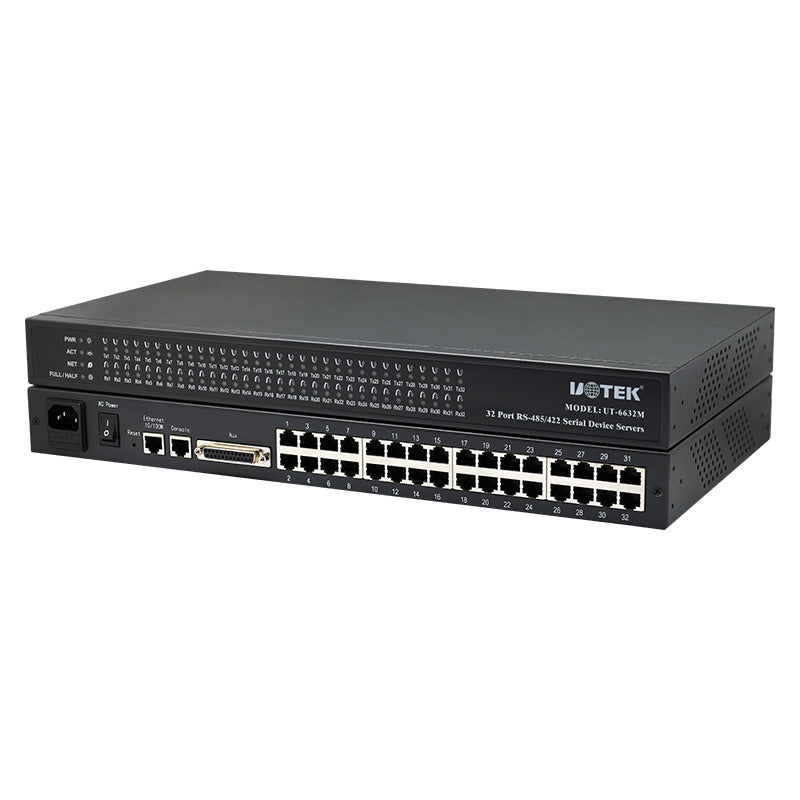

UOTEK UT-6632M 10/100M TCP/IP to 32-port RS-485/422 serial device server
Regular price
$985.29
Sale price
$1,118.00
Tax included.
Shipping calculated at checkout.
>>Hardware Features
● Rich operation modes to meet the application of different industries.
●Provides Windows virtual COM driver software.
●Flexible and reasonable Fixedtty working mechanism under UNIX.
With 32 serial ports, it can be connected to various serial devices such as terminal, Modem, barcode machine, cash register, ISDN, terminal adapter, serial printer and PC, and can realize remote control function.
●With Reset key, it can be forced to reset when the machine is dead.
● With 10/100M adaptive Ethernet port, supporting manual setting.
●Each serial port provides complete signals, including DCD, RXD, TXD, DTR, DSR, RTS, CTS, GND.
● 32-bit embedded 100 megabit CPU with 8M RAM for powerful overall performance.
●Each network port and serial port has its own indicator, which can easily indicate the working status.
>>Software Features
●Supports ARP, IP, ICMP, UDP, TCP, PPP, HTTP, TELNET, DNS, DHCP, PAP, CHAP and other protocols.
●Support Windows extended serial port mode
●Support UNIX host login mode
●Support DNS for domain name service
Support ARP
●Configuration of terminal server parameters
●Support for software upgrade
●Support for status monitoring
●Support MODEM connection
>>Product Specifications
●Serial port number ：32
●CPU ：32bit 100MHz
●Memory ：8M
Serial port
●Baud rate ：50-460800bps
●Parity bits: Nove, Odd, Even, Mark, Space
●Data bits: 5, 6, 7, 8
●Stop bits: 1, 1.5, 2
●Flow control : RTS/CTS, XON/XOFF
●Serial port form ：RJ-45
●Serial port protection ：±15KV anti-static protection
●Signal : RS-422 : TXD+/RXD+/TXD-/RXD-/GND
RS-485：Data+/Data-
●Network port rate: 10/100M adaptive, support manual setting
●Network port form: RJ-45
●Network port protection: embedded 2KV electromagnetic isolation
Software
●Protocol: ARPIPICMPUDPTCPPPPHTTPTELNETDNSDHCPPAPCHAP
●Virtual COM: Windows NT/2000/XP
Environment
●Operating temperature : -20-70℃
● Operating humidity ：5%-95% (no condensation)Storage temperature ：-40-85℃
●Storage humidity ：5%-95% (no condensation)
●Fiber optic interface ：Standard SC
●Certification ：FCC, CE
●Power supply ：AC 220V
●Appearance Material ：Metal shell
●Dimension：Standard 19 inches, 1U height
