UTEK Technology

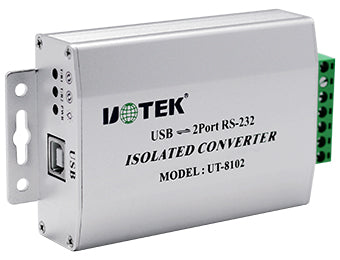

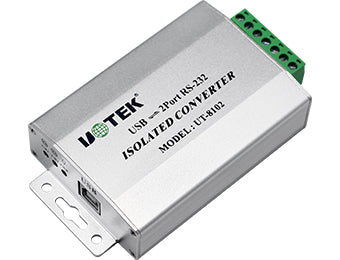

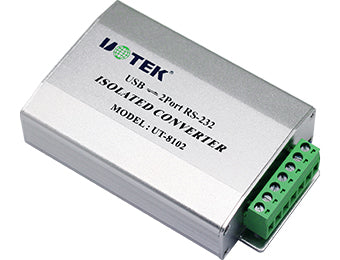

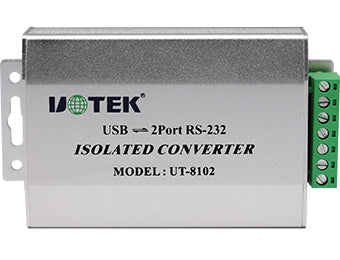

UT-8102 USB to 2 Ports RS-232 Converter with Isolation

$36.77 ~~$42.00~~

Tax included. Shipping calculated at checkout.

Standards: USBV1.1, 2.0, RS-232 EIA
USB signal: VCC, DATA-, DATA+, GND, FG
RS-232 signal: RXD, TXD, GND
Working mode: Asynchronous, point to point
Direction control: Adopts data flow direction auto control technology, distinguish and control the data transmission direction automatically
Baud rate: 300-115,200bps, serial signal baudrate auto detection
Overload capacity: Supports point to point
Transmission distance: Less than 5m for USB port, 5m for RS-232 port
Lightning protection: RS-232 port 8/20us 3000A
Connector: USB-B female, 5.08 terminal block
Signal indicator: Port1, port2, power
Transmission media: Twisted pair or shielded cable
Operating temperature: -40℃to 85℃, relative humidity 5% to 95%
Supports Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
