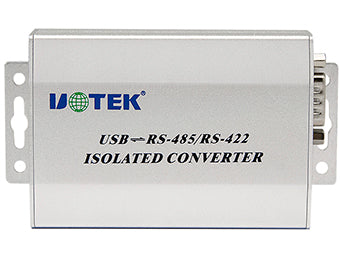

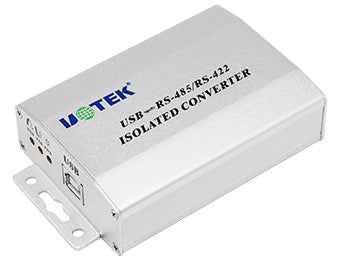

UT-820E USB to RS-485/422 Converter with Isolation

$36.77 ~~$42.00~~

Tax included. Shipping calculated at checkout.

Standards: RS-485/422 EIA, USB V1.1, V2.0
USB signal:VCC, DATA+, DATA-, GND, FG
RS-485 signal：T+, T-, GND
RS-422 signal：T+, T-, R+, R-, GND
Working mode: Asynchronous, point to point or point to multipoint, 2 wires half duplex, 4 wires full duplex
Direction control: Adopts data flow direction auto control technology, auto- identification and auto data transmission direction control
Baud rate: 300-128,000bps, auto detection
Load capacity: Supports point to multipoint, max. allows to connect with 128 sets RS-422/485 device
Transmission distance: RS-485/422: 5000m(9600bps), USB: no more than 5m
Port protection: 1,500W lightning, surge protection, ±15KV ESD protection

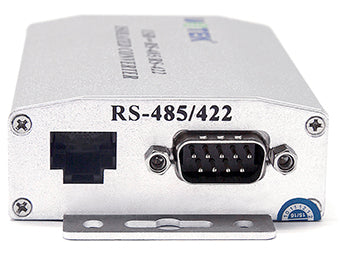

Ports: USB-B female，RJ-45 and DB9 male

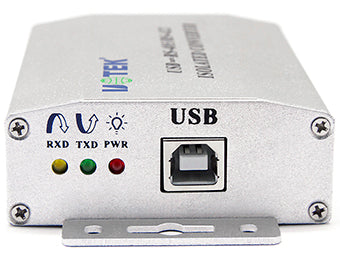

Indicator: PWR, TXD, RXD
Transmission media: Twisted pair or shielded cable
Dimension: 92×64×25mm
Operating temperature: -40 ~ 85℃, relative humidity 5 ~ 95%
Transmission distance: 0-5,000m (128,000bps-9,600bps)
Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
