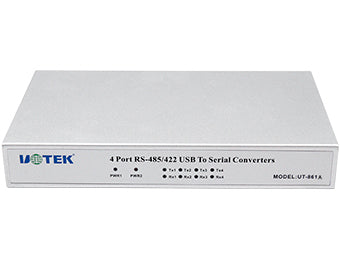

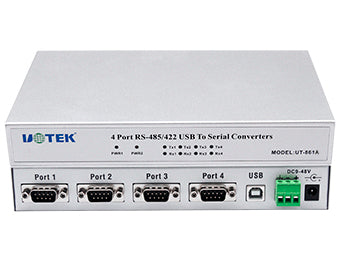

UT-861A USB to RS-485/422 4-port opto-isolated converter

$100.53 ~~$115.00~~

Tax included. Shipping calculated at checkout.

Standards: USBV1.1, 2.0 compliant EIA RS-485/422 compliant
Working mode: Asynchronous work, point-to-point or multi-point, 2-wire half-duplex, 4-wire full-duplex
Directional control: Adopting automatic data flow control technology to automatically identify and control the direction of data transmission
Baud rate: 300-128000bps, automatic detection of serial signal rate
Load capacity: Support point to multipoint each converter can allow the connection of 128 RS-422 or RS-485 interface devices
Transmission distance: RS-485/422 end 5000 meters (128000bps-9600bps), USB port no more than 5 m
Interface protection: 600W lightning, surge protection, ±15KV electrostatic protection per channel
Working mode: Asynchronous work, point-to-point or multi-point, 2-wire half-duplex, 4-wire full-duplex
Directional control: Adopting automatic data flow control technology to automatically identify and control the direction of data transmission
Baud rate: 300-128000bps, automatic detection of serial signal rate
Load capacity: Support point to multipoint each converter can allow the connection of 128 RS-422 or RS-485 interface devices
Transmission distance: RS-485/422 end 5000 meters (128000bps-9600bps), USB port no more than 5 m
Interface protection: 600W lightning, surge protection, ±15KV electrostatic protection per channel
Isolation degree: Isolation voltage 2500Vrms per circuit 500DC continuous dedicated DC/DC module
Isolation mode: master/slave isolation, slave/slave isolation

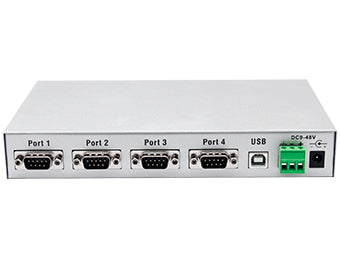

Interface form: USB end B female connector, DB9 male connector
Signal indication: 9 signal PWR, TXD, RXD
Transmission medium: twisted pair or shielded pair
Transmission rate: 128000bps to 300m
38400bps to 2.4Km,
9600bps to 5Km
Dimension: 210mm×130mm×32mm
Operating environment: -40 ~ 85°C, relative humidity 5% ~ 95%Support Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux etc.
