UTEK Technology

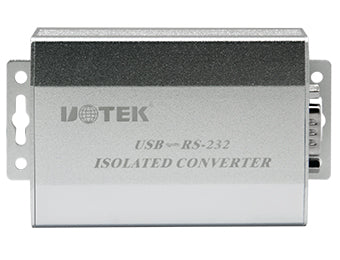

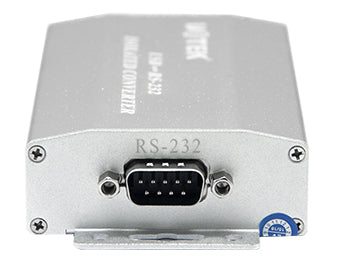

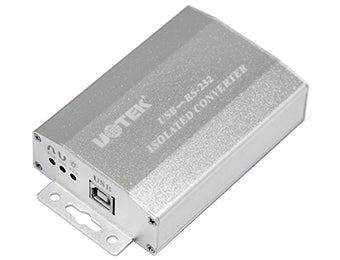

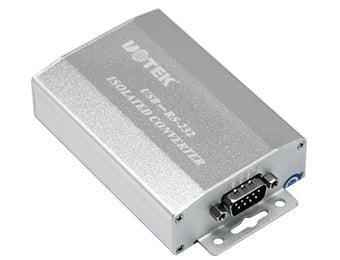

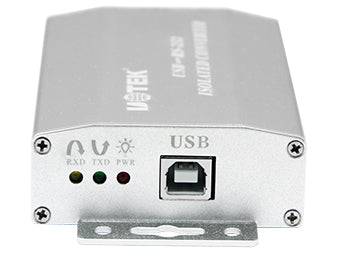

UT-880I USB to RS-232 interface converter

$29.99 ~~$40.00~~

Tax included. Shipping calculated at checkout.

Standards: USBV1.0, 1.1, 2.0 compliant EIA RS-232 standard
Working mode: Asynchronous work, point-to-point work
Direction control: Automatic data flow control technology is used to automatically identify and control the direction of data transmission
Baud rate: 300-460800bps, automatic detection of serial signal rate
Isolation degree: isolation voltage 2500Vrms, 500DC continuous, DC/DC module
Load capacity: Support point-to-point communication mode
Transmission distance： RS-232 terminal 5m, USB port no more than 5m
Interface form： USB B type male, DB9 male connector
USB signal: VCC, DATA+, DATA-, GND, FG
RS-232 signal: RXD TXD GND
Protection level: USB side surge protection 500W RS-232 end surge protection 600W, ±15KV electrostatic protection
Signal indication: 2 signal indicators transmit (TXD) receive (RXD) 1 power indicator (POWER)
Transmission medium: twisted pair or shielded wire
Dimension: 96mm×64mm×26mm (L×W×H)
Operating environment: -40~85°C, relative humidity of 5~95%
