UTEK Technology

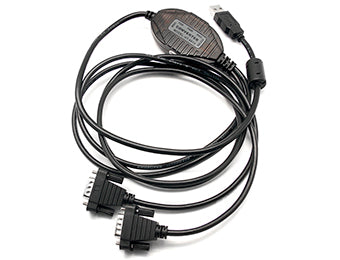

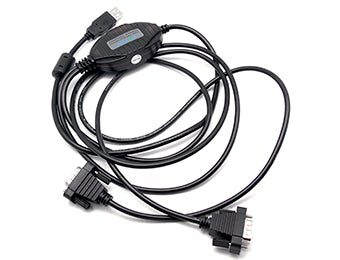

UT-8812 USB to 2 Ports RS-232 Converter

$20.99 ~~$28.00~~

Tax included. Shipping calculated at checkout.

Compatible with USBV1.1、2.0 & EIA RS-232 standards
USB signal: VCC, DATA-, DATA+, GND, FG
RS-232 signal: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Working mode: Asynchronous, point to point
Direction control: Adopts data flow direction auto-control technology to distinguish and control the direction
Baud rate: 300-921.6Kbps, auto detection
Loading capacity: Supports point to point communication
Transmission distance: 5m for RS-232, no more than 5m for USB
Port protection: Surge, ±15KV ESD protection

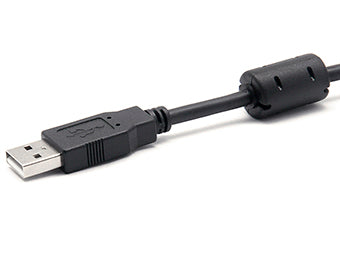

Connector: USB-A male, DB9 male
LEDs for indicating PWR TXD, and RXD activity
Transmission media: Twisted-pair or shielded cable
Length: 1.5m
Operating temperature: -40~85℃
Relative humidity: 5 ~ 95%
Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/ Mac/Linux
