UTEK Technology

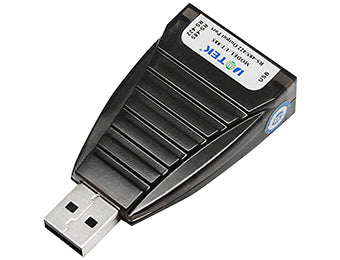

UT-885 USB to RS-485/422 Converter

$12.30 ~~$14.00~~

Tax included. Shipping calculated at checkout.

Standards: USBV1.1, 1.0, 2.0, RS-485, RS-422 TIA/EIA
USB signal: VCC, DATA+, DATA-, GND, FG
RS-485 signal: T/R+, T/R-, GND
RS-422 signal: T+, T-, R+, R-, GND
Working mode: Asynchronous, point to point or point to multi-point, 2 wires half-duplex or 4 wires full-duplex
Direction control: Adopts traffic direction auto control technology
Baud rate: 300-921.6Kbps auto-detect serial signal
Loading capacity: Supports point to multi-point communication, allows to connect 32 sets RS-422 or RS-485 device
Transmission distance: 1,200m(9,600bps) for RS-485/422, no more than 5m for USB
Port protection: 600W lightning, surge, ±15KV ESD protection

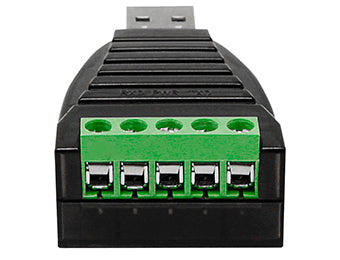

Connector: USB-A male, RS-485/422 5-pin terminal block
LEDs for indicating PWR TXD, and RXD activity
Transmission media: Twisted-pair or shielded cable
Dimension: 62×33×16mm
Operating temperature: -40 ~ 85℃
Relative humidity: 5 ~ 95%
Transmission distance: 0-1,200m（921,600bps-300bps）
Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
