UTEK Technology

UT-B201 Video lightning protector

Regular price $13.45 Sale price $16.00 Unit price per
Tax included. Shipping calculated at checkout.
  • Rated operating voltage Un:5V
  • Max. DC operating voltage Uc:6V
  • Max. AC operating voltage Uc:4.2V
  • Rated operating current IL:0.12A
  • Nominal discharge current (8/20 us) In:5KA
  • Max. discharge current In:10KA
  • Limiting voltage Upl:≤13V
  • Series impedance characteristics of the line Ro :10 Ohm
  • Capacitance value between line and ground Cpe:≤10 pF
  • Response time ta:<1 ns
  • Operating temperature range: -40~85°C
  • Test standard: IEC61000-4-5
  • Test level: X
  • Insulation resistance: >1MΩ
  • Insertion loss (dB): ≤0.5 dB
  • Enclosure protection level: IP30

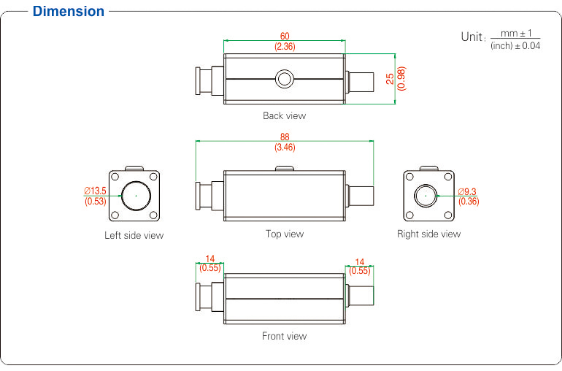

  • Dimension: 25 x 25 x 88mm
  • Enclosure material: shielded metal aluminum
  • Wiring form: BNC(K/J)
  • Anti-static Level:  4
  • Transmission rate (BPS): 200M
