UTEK Technology

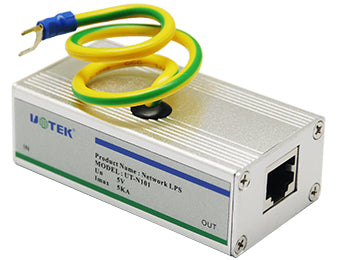

UT-N101 Network Lightning Isolator
Regular price
$13.45
Sale price
$16.00
Tax included.
Shipping calculated at checkout.
Rating Voltage Un：5V
Operating Voltage (Max DC) Uc: 6V
Operating Voltage (Max AC) Uc: 4.2V
Current Rating: 0.12A
Nominal Discharging Current（8/20 us）In：3KA
Max Discharging Current In：5KA
Limiting Voltage Upl：≤12V
Impedance Ro：10 Ohm
Capacitance Cll：≤3pF
Capacitance Cpe：≤3F
Response Time Ta：＜1 ns
Operating Temperature: -40℃～85℃
Rating Voltage Un：5V
Operating Voltage (Max DC) Uc: 6V
Operating Voltage (Max AC) Uc: 4.2V
Current Rating: 0.12A
Nominal Discharging Current（8/20 us）In：3KA
Max Discharging Current In：5KA
Limiting Voltage Upl：≤12V
Inpedance Ro：10 Ohm
Capcitance Cll：≤3pF
Capcitance Cpe：≤3F
Response Time Ta：＜1 ns
