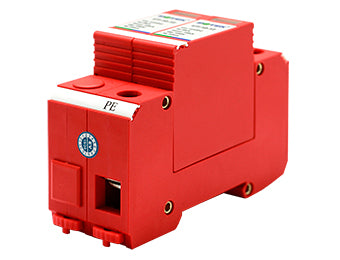

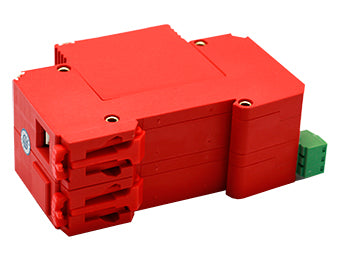

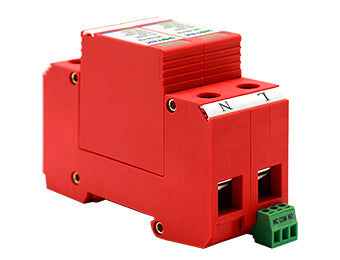

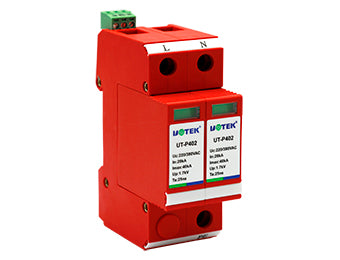

UT-P402 AC Power lightning protector

• Continuous operating voltage: 220VAC
• Max. continuous operating voltage: 385VAC
• Through-current capacity (In): 20KA
• Max. through-current capacity (Imax): 40kA
• Protection level (Up at In): ≤1500V
• Access wire area: 6 mm2
• Telecommunication definition (optional): NC-COM is normally closed, COM is common point, NO-COM is normally open

• Failure indication: green: normal, red: failure
• Response time (tA): 25ns
• Dimension: 90*36*65mm
• Protection level: IP20
• Front fuse: 30AgL/gG
• Protection mode: L/PE, N/PE

                   L/N, N/PE

• Flame retardant grade: V0/red
• Installation mode: 35 mm rail mounting
• Operating environment: temperature -40 ~ 85°C, relative humidity ≤ 95% (25 °C), height ≤ 3km
