UTEK Technology
UT-S2201 RS-232 lightning protector
Regular price
$21.72
Sale price
$25.00
Tax included.
Shipping calculated at checkout.
- Rated operating voltage Un：15V
- Max. DC operating voltage Uc：16.5V
- Max. AC operating voltage Uc：11V
- Rated operating current IL：0.12A
- Nominal discharge current (8/20 us) In：5KA
- Max. discharge current In：10KA
- Limiting voltage Upl：≤30V
- Series impedance characteristics of the line Ro ：10 Ohm
- Capacitance value between line and line Cll：≤80pF
- Capacitance value between line and ground Cpe：≤140pF
- Response time ta：＜1 ns
- Operating temperature range: -40～85°C
- Test standard: IEC61000-4-5
- Test level: X
- Insulation resistance: >1MΩ
- Insertion loss (dB):≤0.5 dB
- Enclosure protection level: IP30

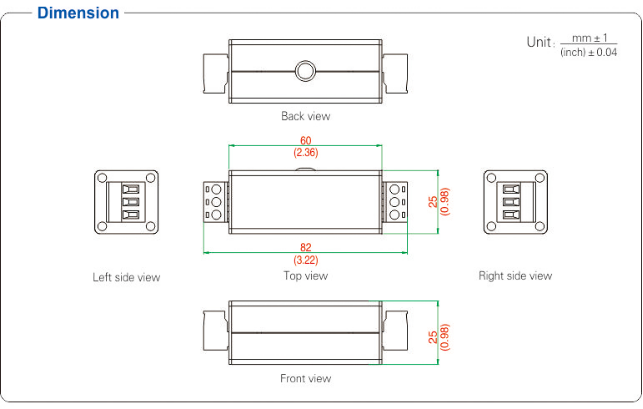

- Dimension: 25 x 25 x 82mm
- Enclosure material: shielded metal aluminum
- Wiring form: terminal block (RS-232)
- Anti-static Level: 4
- Transmission rate (BPS): 10M
